Description

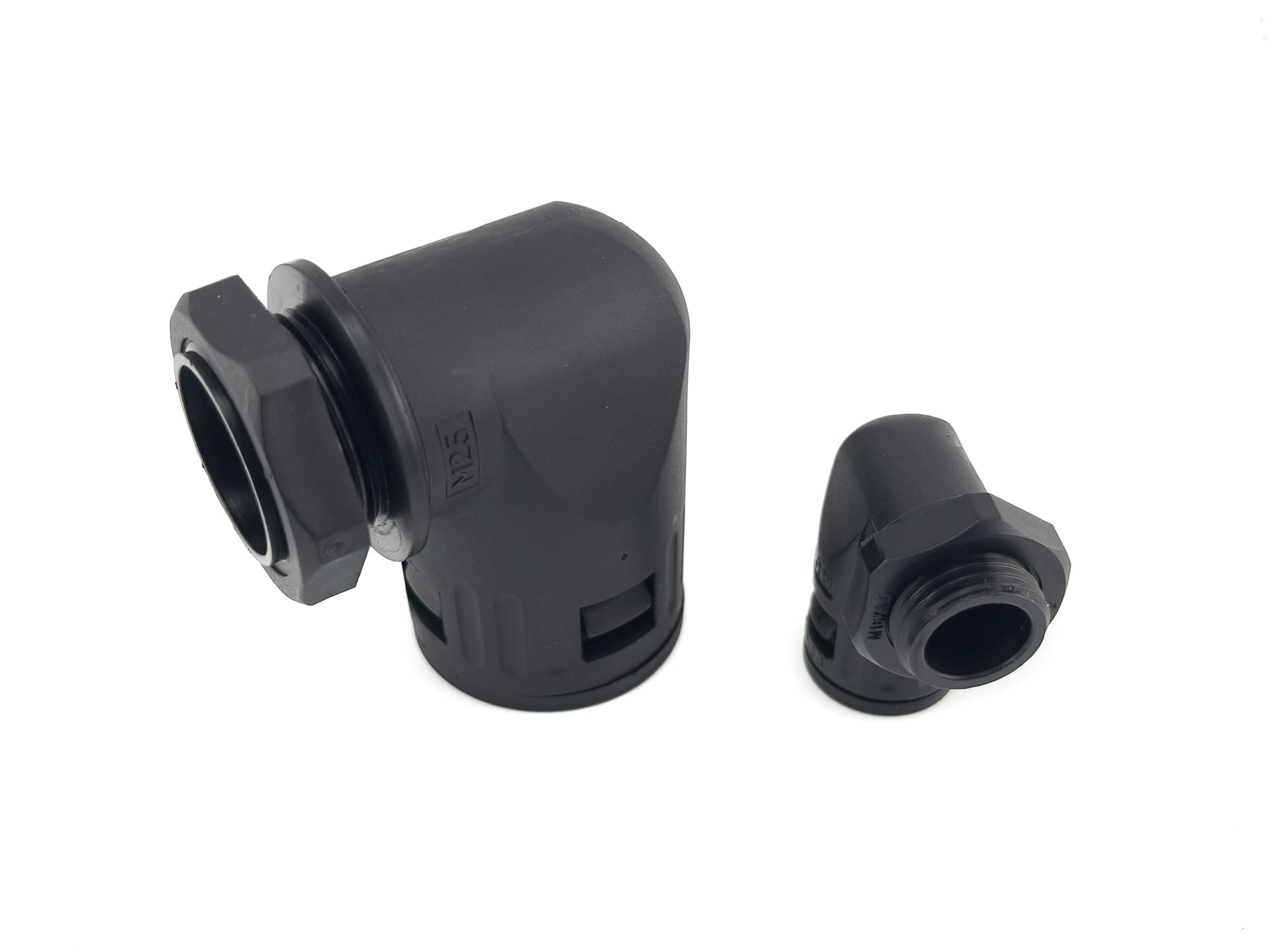

Corrlok Medium Duty Conduit 90 Degree Fittings
Indeed, the Corrlok 90 degree fittings change direction at a cable entry point, in medium-duty construction, available in IP66 or IP68.
corrlok 90 degree fittings — Available Options
Available in the following conduit outside diameters, each with its matching thread and a choice of IP66 or IP68:
- 10mm diameter — M12 thread
- 13mm diameter — M16 thread
- 15.8mm diameter — M16 thread
- 20mm diameter — M20 thread
- 21.2mm diameter — M20 thread
- 25mm diameter — M25 thread
- 28.5mm diameter — M25 thread
- 34.5mm diameter — M32 thread
- 42.5mm diameter — M40 thread
- 54.5mm diameter — M50 thread
Because the thread size is fixed to each conduit diameter rather than a free combination, so using the exact pairing listed here, and the variation table for the IP rating needed, is the important check. Therefore, checking the diameter and thread before ordering is the first step. In addition, confirming the operating environment helps ensure the complete assembly performs as intended.
Applications
Overall, this product suits:
- For example, changing the direction of a conduit run at a cable entry point
- Also, choosing IP68 where a higher level of ingress protection is specified
- In particular, matching this fitting to the correct locknut for a complete assembly
- Finally, general industrial and outdoor cable entry work
More From This Range
Additionally, browse our complete Corrlok Conduit and Fittings range, or see Straight Version, Locknuts.
Buy corrlok 90 degree fittings in Australia
Overall, Engineering Supplies stocks this product at our Perth warehouse for electrical contractors, switchboard builders and industrial customers throughout Australia.
Then, match the diameter and thread against the variation table before ordering, since a mismatched size will not fit or seal correctly. Also, our team can help confirm the right combination for your job.
Contact Engineering Supplies for pricing, availability or selection support on (08) 9258 8444 or email sales@engsup.com.au, quoting the size, IP rating and quantity required.
Overall, it comes in conduit outside diameters from 10mm to 54.5mm, each in IP66 or IP68.
P/N: CLCM90
