Termco Copper LugsStandard Copper Lugs
Description
Termco Standard Copper Lugs are electro-tinned copper cable lugs for reliable copper conductor termination. Available from 1.5mm² to 630mm² and compliant with IEC61238-1 & AS/NZS 4325.1.
Key Features:
- Manufacturer to IEC61238-1 & AS/NZS4325.1
- 99.9% Conductivity by I.A.C.S standards
- Works with existing Australian tooling
- Suitable for connecting copper conductors in both indoor and outdoor applications
- Electro Tinned
- For Cables: 1.5mm² – 630mm²
- Termco Copper Lugs
Termco Bell Mouth Copper Lugs
Description
Termco Copper Bell Mouth Lugs – are made with a flared cable entry (similar looking to a bell) to suit flexible cables, that when de-sheathed, often fray and become difficult to insert into the correct size copper tube.
Overall, the flared entry allows for ease of insertion of any cable without having to go up a lug size and risking a weaker crimp connection. These are available in 10mm² – 300mm² with other sizes available made to order.
In addition, all Termco Copper Lugs and Links are made to the highest possible specifications and are electro tinned finished. Manufactured to Australian dimensions, the Termco Copper Lugs and Links comply with Australian Standards AS/NZS4325.1 and is fully compatible with existing Australian tooling.
Key Features:
- Flared Entry
- Made to Australian standards AS/NZS4325.1
- 99.9% Conductivity by I.A.C.S standards
- Works with existing Australian tooling
- Suitable for connecting copper conductors in both indoor and outdoor applications
- Electro Tinned
- For Cables: 10mm² – 300mm²
- Cable Ties
KSS Colour Cable Ties – Nylon 66
Basically, KSS Colour Cable Ties provide an easy way to bundle and visually identify cables, wiring and components.
Additionally, manufactured from UL-approved Nylon 66 with a UL94V-2 flame rating, the range includes standard and fluorescent colours in 100mm, 150mm, 203mm and 300mm lengths.
Overall, ideal for switchboards, control panels, cable harnesses, equipment wiring and general industrial cable management.
Pack Qty: 100
P/N: CVCOLOUR - Cable Ties
KSS Weatherproof Cable Ties (Black)
KSS Weatherproof Cable Ties are black UV-resistant Nylon 66 ties designed for outdoor electrical, industrial and cable management applications.
Carbon black is added to improve resistance to ultraviolet exposure, helping extend service life when used in sunlight and outdoor environments.
- Termco Copper Crimp Links
Copper Crimp Links
This product is a straight-through crimp link for joining two copper conductors of the same size, available in nineteen cable sizes.
- For example, joining two lengths of copper conductor of the same size
- Also, jobs needing a permanent crimped connection rather than a mechanical joint
- In particular, general copper cable jointing and repair work
SKU: TCLK
- Utilux Copper Lugs & Links
Copper Crimp Lugs
Utilux Copper Crimp Lug is a standard copper crimp lug for cable-to-equipment termination, in 0.5mm² to 630mm² sizes.
P/N: CG
- Termco Copper Crimp Links
Termco Copper Reducing Links
Termco TCLRL Copper Reducing Links are designed to join two different sizes of copper conductor using a crimped compression connection. Manufactured to Australian dimensions and electro-tinned, the range is available in multiple conductor combinations from 6mm² down to 4mm² through to 300mm² down to 240mm².
Select the required large and small conductor sizes above.
- Utilux Copper Lugs & Links
Copper Crimp Links (Butts)
Copper Crimp Link is a copper crimp link for joining two same-size cable ends, in 0.5mm² to 630mm² sizes.
P/N: CGLH1
- Cable Clips
Rubber Lined Steel Cable Clamp (P Clip)
Indeed, this P clip clamps cable bundles from 3mm to 51mm diameter, with a soft liner to protect the cable jacket.
- Screw-mounted P-clip fixing for round cable or bundles
- Diameters from small control cable (3mm) up to large bundles (51mm)
- Installations needing a cushioned P clip rather than a nail-through fixing
Sold individually (each).
- Heat Shrinks
Termco Heat Shrink End Cap
Specifically, see the table above for the exact size, colour and price of each available variant.
P/N: HSEC
- Switchboard Accessories
Standoff Insulators – 660V Busbar Supports
Standoff Insulators provide electrical insulation and mechanical support for busbars and conductive components in switchboards, control panels and electrical assemblies.
Rated to 660V, these compression-moulded glass-reinforced polyester insulators feature high dielectric strength, moulded-in brass inserts and metric threads from M6 to M12.
Available in heights from 25mm to 76mm.
P/N: SOIRED
- Termco Copper Lugs
Termco Narrow Palm Copper Lugs
Termco TCLNP Narrow Palm Copper Lugs are designed for cable terminations where standard lug palms are too wide, including circuit breakers and equipment with restricted terminal space. Available for copper conductors from 35mm² to 300mm² with multiple stud and palm-width options.
Finally, select the required cable size and stud size above.
- Heat Shrinks
Termco Dual Wall Heat Shrink Lengths
Specifically, see the table above for the exact size, colour and price of each available variant.
P/N: DWL
- Cable Glands
KSS Nylon Compression Cable Glands – Black
KSS Nylon Compression Cable Glands provide secure cable entry, strain retention and environmental sealing for electrical panels, enclosures and equipment.
Manufactured from black Nylon 66 with a TPE sealing insert, the AG series offers IP68 protection when correctly installed.
Available in metric thread sizes from M12 to M63 for cable diameters from 3mm to 50mm.
P/N: AG Series
- Earth Rods & Accessories
CLAMP210 Earth Rod Clamp
CLAMP210 Earth Rod Clamp is a robust U-bolt style clamp for connecting a single earthing conductor parallel to an earth rod.
Suitable for 3–15mm earth rods and conductors from 16–120mm², the clamp uses a high-copper-content alloy body with a V-groove to securely accommodate the earthing cable.
Dulmison P/N: CLAMP210
Engineering Supplies P/N: DULCLAMP210 - Wiring Duct

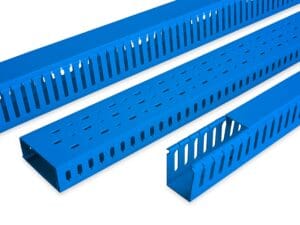

KSS Wiring Duct (Slotted)
KSS Slotted Wiring Duct provides organised cable routing inside switchboards, control panels, electrical cabinets and industrial equipment.
Manufactured from flame-rated PVC, the duct features slots along the sidewalls for easy wire entry and exit while the removable lid keeps wiring contained and neatly organised.
Available in a wide range of widths, heights and colours.
P/N: SD Series
