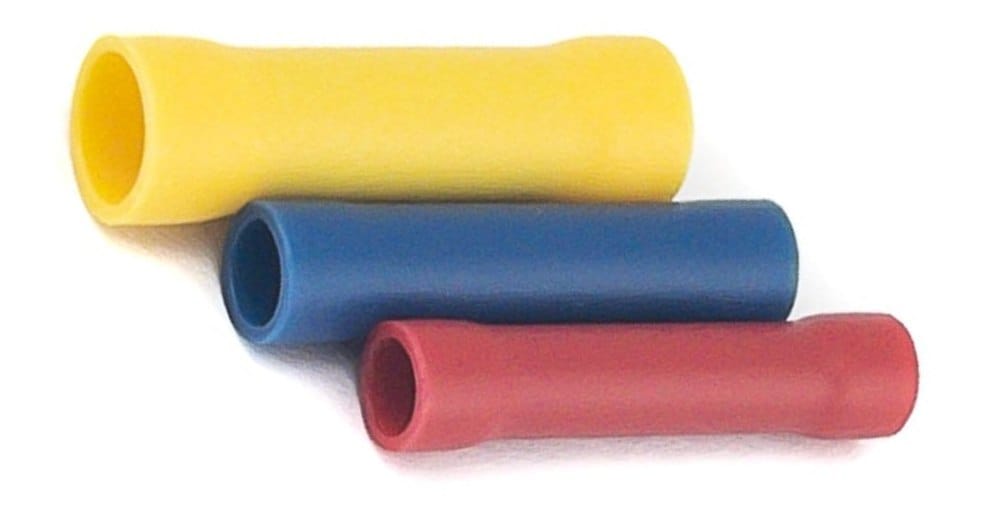

Utilux Pre-Insulated Crimp Link Connectors
A crimp link connector joins two conductor ends inside one insulated barrel. This forms a permanent electrical splice rather than a stud, socket or plug connection. Utilux pre-insulated crimp link connectors come colour-coded across the full 0.5mm² to 6.0mm² conductor range, matching the standard red, blue and yellow colour coding used throughout this terminal range.
A crimping tool forms the joint, so installers need no heat source on site. Consequently, this connector suits general wiring repairs and extensions wherever a permanent, insulated splice is the goal, rather than a plug-in or stud connection.
Sizes and Colour Coding
Specifically, this range covers three colour-coded conductor sizes.
- Red – 0.5mm² to 1.5mm²
- Blue – 1.5mm² to 2.5mm²
- Yellow – 2.5mm² to 6.0mm²
Applications
Installers use crimp link connectors to join two conductor ends permanently inside a junction box, panel or cable run. Typical jobs include extending an existing circuit or repairing a damaged cable, or joining two shorter cable runs into one longer run. Accordingly, this range covers the common conductor sizes found in general wiring and control circuits.
Correct crimping always requires a crimping tool matched to the conductor size. Additionally, installers should match the connector colour to the conductor size at each end of the splice, and check that both ends sit fully inside the barrel before crimping.
Utilux Pre-Insulated Crimp Link Connectors Australian Supply
Overall, Engineering Supplies stocks the full Utilux Terminals range. This includes ring, fork, pin, push-on, bullet, blade, cord end and link terminals, throughout Australia.
Contact Engineering Supplies for pricing, availability or technical assistance on (08) 9258 8444 or email sales@engsup.com.au.
