Description

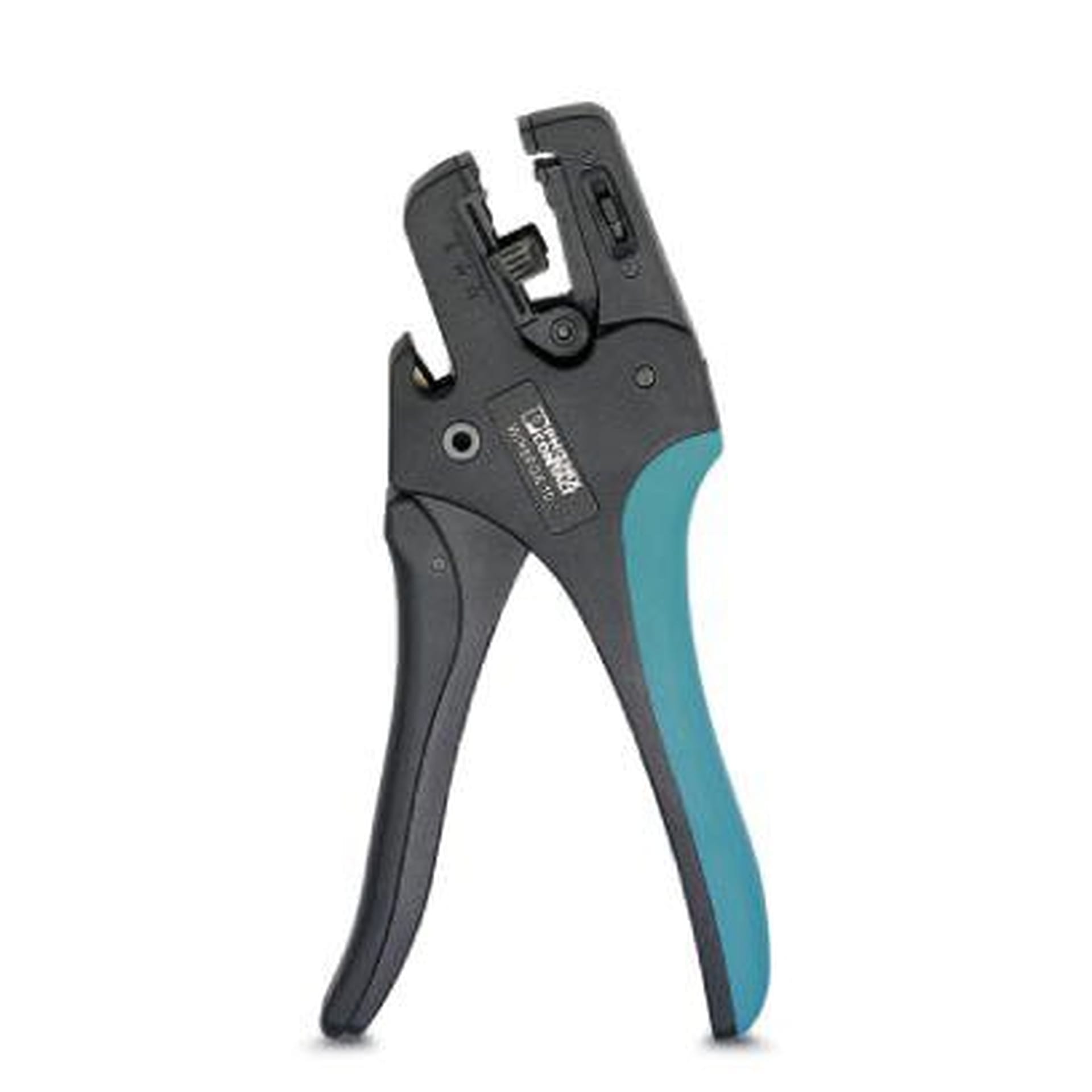

The Phoenix Contact WIREFOX 10 is a self-adjusting wire stripper for cables and conductors from 0.02 to 10 mm². An adjustable length stop covers stripping lengths from 2 to 18 mm. The tool also has a built-in wire cutter and a replaceable stripping blade.
Phoenix Contact WIREFOX 10 features
- Automatic adjustment for a range of wire sizes and insulation types.
- 0.02–10 mm² stripping range.
- Adjustable stop for the required strip length.
- Built-in wire cutter with separate limits for stranded and solid wire.
- Replaceable blade and listed alternative inserts.
Stripping and cutting specifications
| Detail | Specification |
|---|---|
| Stripping cross-section | 0.02–10 mm² |
| Stripping length | 2–18 mm |
| Maximum cutting capacity, stranded wire | 10 mm² |
| Maximum cutting capacity, solid wire | 1.5 mm² |
| Length × width × height | 191 × 20 × 90 mm |
| Direct replacement blade | WIREFOX 10/SB — 1212152 |
| Phoenix Contact order number | 1212150 |
| Engineering Supplies SKU | PC1212150 |
Choose the strip length for the terminal
First, check the wire type and cross-section. Then set the length stop to the strip length required by the terminal or ferrule you plan to fit. The self-adjusting mechanism supports different wire sizes, while the stop helps you keep the prepared length consistent.
Keep the cutting limits separate from the stripping range. For example, the tool strips wire sizes up to 10 mm², but its cutter’s limit for solid wire is 1.5 mm². Use the correct row in the table for the task and wire construction.
For the next step in ferrule preparation, compare the CRIMPFOX 10S square-crimp pliers. Check the ferrule, wire and crimp profile together before selecting the tools.
Replacement and alternative blades
WIREFOX 10/SB, 1212152, is the direct replacement blade. Phoenix Contact also lists these inserts for use in WIREFOX 10:
- WIREFOX 4/SB — 1212151.
- WIREFOX 16/SB — 1212153.
- WIREFOX 6SC/SB — 1212314.
Each blade has its own cable range and application. Check the insert data and tool instructions before changing blades. Quote the blade number when asking about a spare, and the tool number when ordering the complete stripper.
Product data and ordering support
See the official WIREFOX 10 product page for full details. For help selecting the tool or blade, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Include the wire size, insulation type and required strip length with your enquiry.
