MICROFOX-SB_DB

In Stock

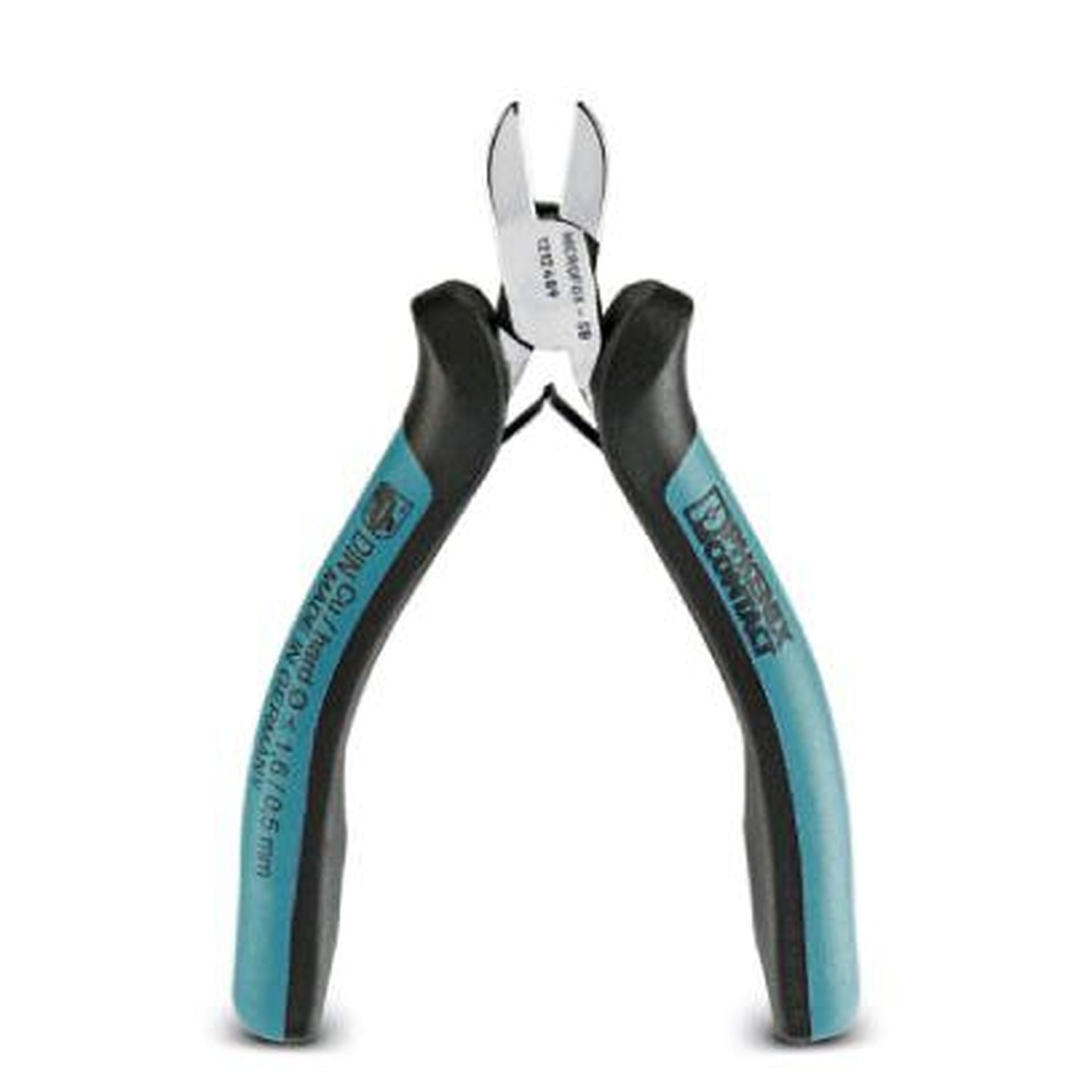

The Phoenix Contact MICROFOX-SB_DB is a 115 mm electronic diagonal cutter with a round head and opening spring. Cutting capacities are 0.2–2.0 mm soft wire, up to 1.2 mm medium-hard wire and up to 0.5 mm hard wire. Manufacturer part 1212805, in backcard packaging.

Description

Phoenix Contact MICROFOX-SB_DB diagonal cutter

The Phoenix Contact MICROFOX-SB_DB is a 115 mm diagonal cutter for fine electronics work. It combines a round head, cutting edges without a chamfer and a spring that opens the jaws after each cut. The compact body suits wire preparation where a larger cable cutter would be awkward to position.

Its cutting capacity depends on the hardness of the wire. For soft wire, the stated diameter range is 0.2–2.0 mm. The limit is 1.2 mm for medium-hard wire and 0.5 mm for hard wire. Check the material and diameter together when choosing the tool for a job.

MICROFOX-SB_DB specifications

  • Manufacturer: Phoenix Contact
  • Manufacturer part number: 1212805
  • Engineering Supplies SKU: PC1212805
  • Tool length: 115 mm
  • Head shape: round
  • Cutting edge: without chamfer
  • Soft wire diameter: 0.2–2.0 mm
  • Medium-hard wire diameter: up to 1.2 mm
  • Hard wire diameter: up to 0.5 mm
  • Opening spring and two-component handles
  • Backcard packaging for a sales display

Control during repeated cuts

The opening spring makes it easier to move from one cut to the next. Meanwhile, the two-component handles provide grip, and the joint supports stable movement of the jaws. Phoenix Contact makes the tool from special tool steel and uses polished, oiled metal surfaces to help resist rust.

Keep the edges clean and check their condition before fine work. Also, allow enough room to place the head at the required cutting point. If the job calls for a tapered head at an angle, compare the MICROFOX-SP_DB diagonal cutter. Use each model’s own specifications when deciding which one suits the task.

Further details and support

See the Phoenix Contact MICROFOX-SB_DB product information for the maker’s details. For selection help, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Quote PC1212805 and provide the wire diameter, material and the space available around the cut.
