Description
Termco Copper Reducing Links

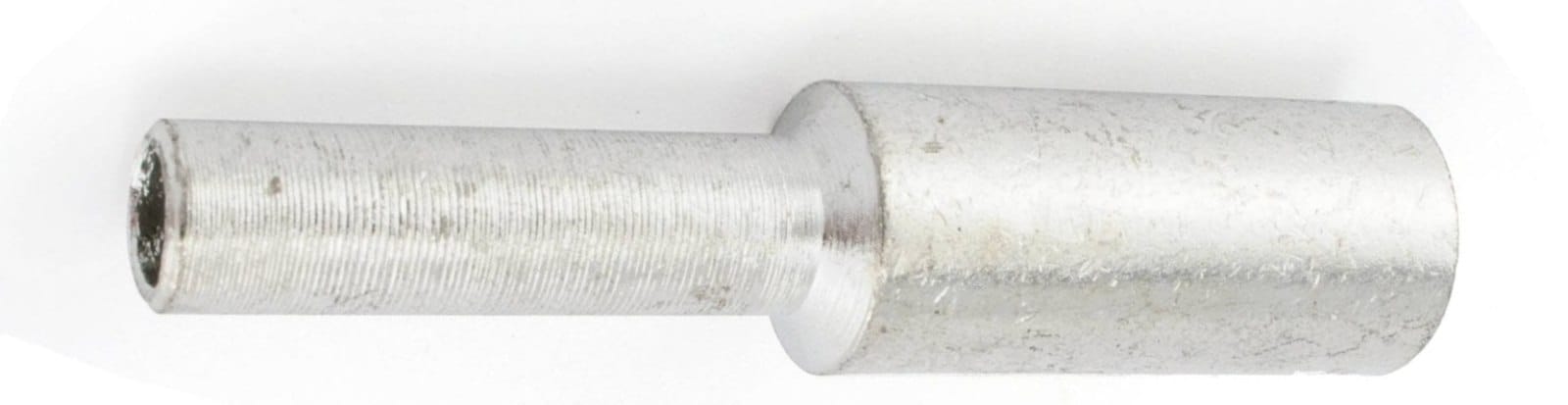

Termco TCLRL Copper Reducing Links provide a reliable method of joining two copper conductors of different cross-sectional sizes. Unlike a standard straight copper crimp link, each reducing link has different barrel sizes at either end to suit the corresponding conductor sizes.
They are suitable for electrical installations where a larger copper conductor needs to transition to a smaller conductor while maintaining a permanent crimped connection.
Termco copper lugs and links are manufactured from high-grade oxygen-free copper, electro-tinned and manufactured to Australian dimensions. The Termco copper compression range is designed for compatibility with Australian-style crimping tooling and complies with AS/NZS 4325.1.
Copper Reducing Link Sizes
The TCLRL range is available in numerous conductor-size combinations, including sizes from 6mm² to 4mm² through to 300mm² to 240mm².
Common combinations include:
- 16mm² to 6mm²
- 25mm² to 16mm²
- 35mm² to 25mm²
- 50mm² to 35mm²
- 70mm² to 50mm²
- 95mm² to 70mm²
- 120mm² to 95mm²
- 150mm² to 120mm²
- 185mm² to 150mm²
- 240mm² to 185mm²
- 300mm² to 240mm²
Additional size combinations are available using the product selectors above. The current Engineering Supplies range includes TCLRL variations covering large conductor sizes from 6mm² to 300mm² and small conductor sizes from 4mm² to 240mm².
Key Features
- Designed for joining different-size copper conductors
- Copper compression connection
- Different barrel size at each end
- Electro-tinned finish
- Manufactured to Australian dimensions
- Compatible with Australian-style crimping tooling
- Termco TCLRL product range
- Wide range of conductor-size combinations
- Suitable for industrial, electrical distribution and infrastructure applications
Selecting the Correct Copper Reducing Link
Select the reducing link according to the nominal cross-sectional area of the conductor entering each end of the link.
For example:
TCLRL95-70 is designed to transition from a 95mm² copper conductor to a 70mm² copper conductor.
The correct crimping dies and approved crimping method should be used for each conductor and barrel size. If you are unsure which reducing link, crimping die or crimping tool is required, contact Engineering Supplies for assistance.
