Utilux Yellow Pin Terminals

Pin Terminals – 2.5 – 6.0mm2 Yellow

In Stock

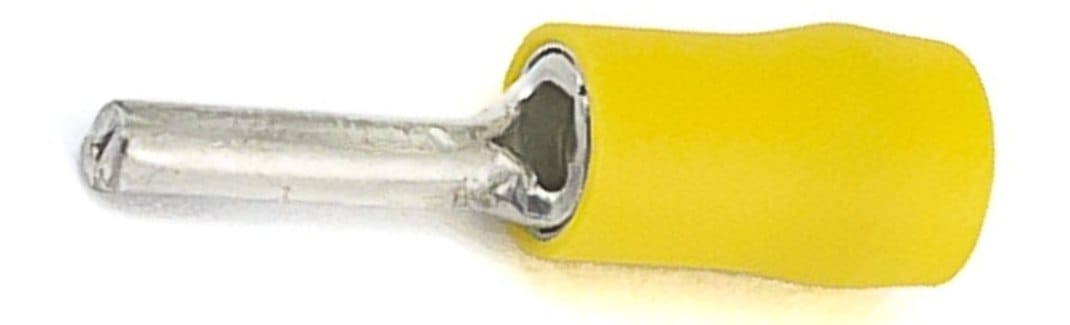

Utilux Pin Terminals – 2.5–6.0mm², Yellow are crimp terminals with a solid round pin end that inserts into a matching socket or terminal block, keeping the connection secure under vibration and movement.

Available for conductors from 2.5mm² to 6.0mm², colour-coded Yellow, in the Supergrip style, 2.8mm pin width.

P/N: UPT3

Description

Pin terminals crimp onto a stripped conductor and terminate in a solid round pin, which inserts into a matching socket, terminal block or connector housing. Utilux yellow pin terminals suit stranded conductors from 2.5mm² to 6.0mm², colour-coded yellow to match this conductor range. Engineering Supplies stocks this size in the Supergrip crimp style.

Because the pin end is solid and precisely sized, it seats firmly in its socket without the vibration-related loosening that can affect a plain stripped wire end. Consequently, pin terminals suit terminal blocks and connector housings that call for a defined pin size rather than a bare conductor.

Pin Size

Specifically, Engineering Supplies stocks this size in the Supergrip crimp style only, with the following pin width and overall length:

Supergrip – 2.8mm pin width, 27.5mm overall length

Applications

Installers use pin terminals wherever a conductor terminates at a terminal block, connector housing or plug that accepts a round pin end, such as control panel wiring, PLC terminal blocks and equipment connectors. Accordingly, this size covers the larger pin dimension needed for heavier conductors in this equipment.

In all cases, correct crimping requires a crimping tool suited to this conductor size range. The Supergrip crimp style adds a heavier-duty crimp barrel for extra pull-out strength. This suits the larger conductor sizes in this range. Installers should confirm the pin width and overall length match the socket or terminal block being used.
