Utilux Red Ring Terminals

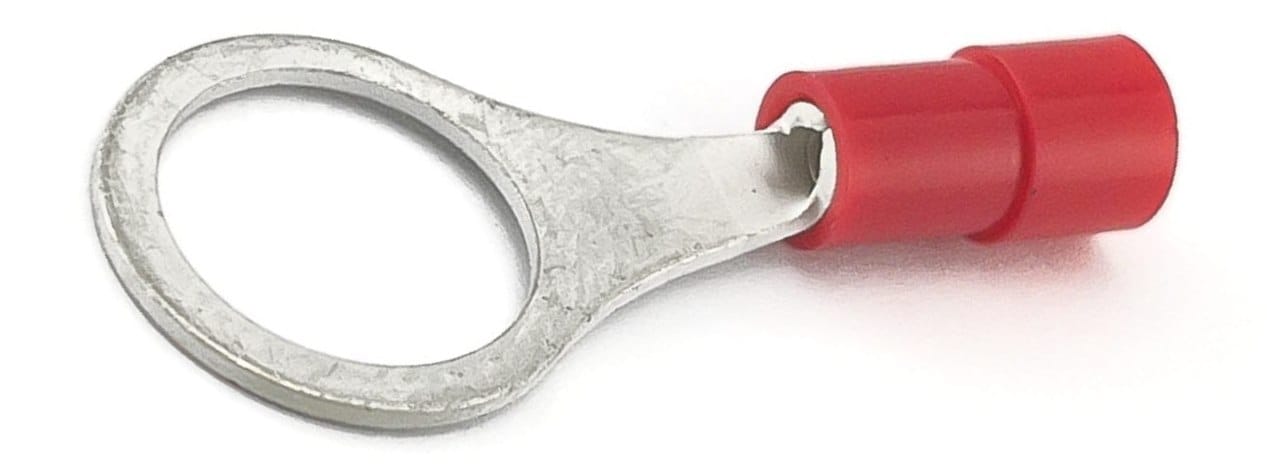

Ring Terminals – 0.5 – 1.5mm2 Red

In Stock

Utilux Ring Terminals – 0.5–1.5mm², Red are crimp terminals with a closed ring end that bolts onto a stud or screw terminal, keeping the connection secure under vibration and movement.

Available for conductors from 0.5mm² to 1.5mm², colour-coded Red, in Insulated, Supergrip and Uninsulated styles across stud sizes from 1.6mm to 10mm.

P/N: URT1

Description

Ring terminals crimp onto a stripped conductor and terminate in a closed ring. This ring fits fully around a stud or screw, so the connection stays seated even under vibration or repeated movement. Utilux red ring terminals suit stranded conductors from 0.5mm² to 1.5mm², colour-coded red to match this conductor range.

Because the ring closes fully around the stud, the terminal cannot slip off sideways. An open fork terminal can slip off in this way, but a ring terminal cannot. Consequently, ring terminals are the standard choice wherever a permanent bolted connection is required.

Stud Sizes and Insulation Styles

Specifically, this range covers three insulation styles, each with its own stocked stud-size range.

Insulated – 3mm to 10mm stud sizes
Supergrip – 1.6mm to 10mm stud sizes
Uninsulated – 3mm and 4mm stud sizes

Applications

Installers use ring terminals wherever a conductor terminates permanently at a stud, busbar or screw terminal. Typical examples include switchboard wiring, earthing connections and control panel building. Accordingly, this range covers the stud sizes commonly found in this equipment.

In all cases, correct crimping requires a crimping tool suited to this conductor size range. The Supergrip style adds a heavier-duty crimp barrel for extra pull-out strength on the same conductor range. Installers can therefore choose Insulated, Supergrip or Uninsulated to suit the application. Uninsulated terminals also suit jobs where the installer applies their own heat-shrink or tape after crimping, rather than relying on a factory-fitted sleeve.
