Description

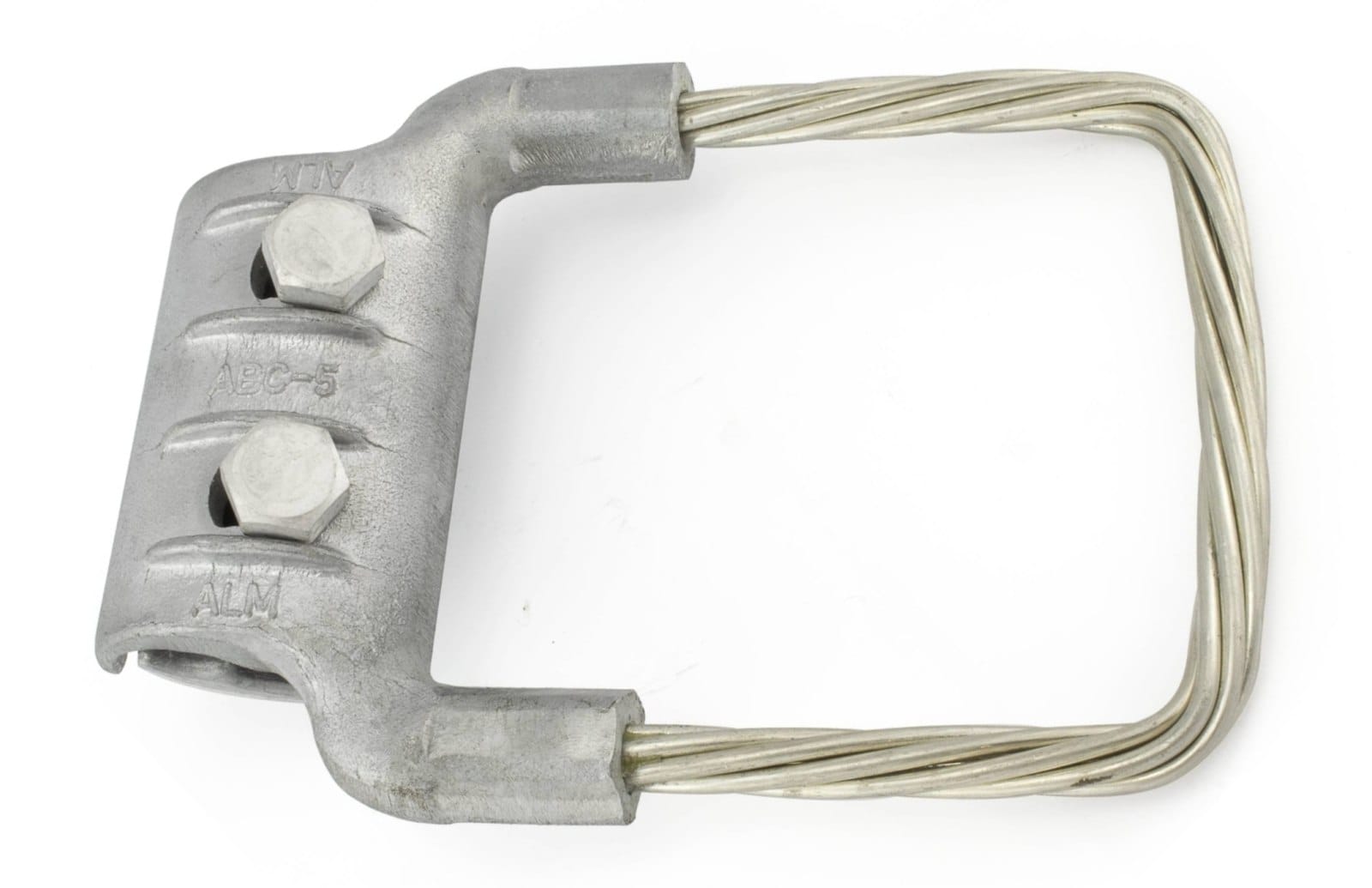

The ABC5-2 bail clamp combines an aluminium alloy clamp body with a copper loop for an overhead line connection. This ABC5 series version has aluminium hardware. It accepts conductors with an overall diameter of 6.75–18.80 mm and is supplied pre-filled with Alminox.
ABC5-2 bail clamp features
- High-strength, high-conductivity aluminium alloy body.
- Aluminium bolts and hardware on the ABC5-2 version.
- Copper bail loop below the clamp body.
- Side clamp with an overlapping body that shields the line connection from the weather.
- Captured bolts for installation with one spanner.
- Alminox compound pre-filled in the clamp.
The body grips the line conductor while the loop provides the bail connection. The broad conductor range lets the same clamp size cover several listed conductor constructions. However, the actual conductor dimensions must fall within that range.
Technical details
- Part number: ABC5-2.
- Series: ABC5.
- Product group SKU: ABC.
- Conductor stranding range: 7/2.25 to 19/3.75.
- Overall conductor diameter: 6.75–18.80 mm.
- Hardware: aluminium.
- Listed weight: 0.35 kg each.
- Packing: individually packed in a plastic bag.
Select the required version
First, check the conductor stranding and outside diameter. Then confirm that the ABC5 series body and aluminium hardware match the required part. The hardware suffix matters when comparing this item with other versions in a project schedule.
If you need a particular loop size, installation drawing or tightening information, contact us before ordering. We can help check the supplied version against the job requirements.
