Description
The Cembre B1300PL is a portable 18V battery-powered electro-hydraulic pump for operating compatible Cembre hydraulic heads.
It develops hydraulic pressure up to 700 bar without requiring mains power or a manual hydraulic pump. Therefore, it provides a practical power source for field crimping, cable cutting and other compatible hydraulic applications.
In addition, its compact 4 kg design, 90 cm flexible hose and cordless operation make it easy to transport and position around the worksite.
B1300PL Hydraulic Operation
The pump uses an 18V battery-powered electric motor to operate its hydraulic system.
Its two-speed hydraulic action helps reduce operating time. First, the pump rapidly supplies hydraulic oil to advance the connected head. Then, it changes to the high-pressure stage required to complete the operation.
As a result, operators get faster head positioning together with hydraulic pressure up to 700 bar.

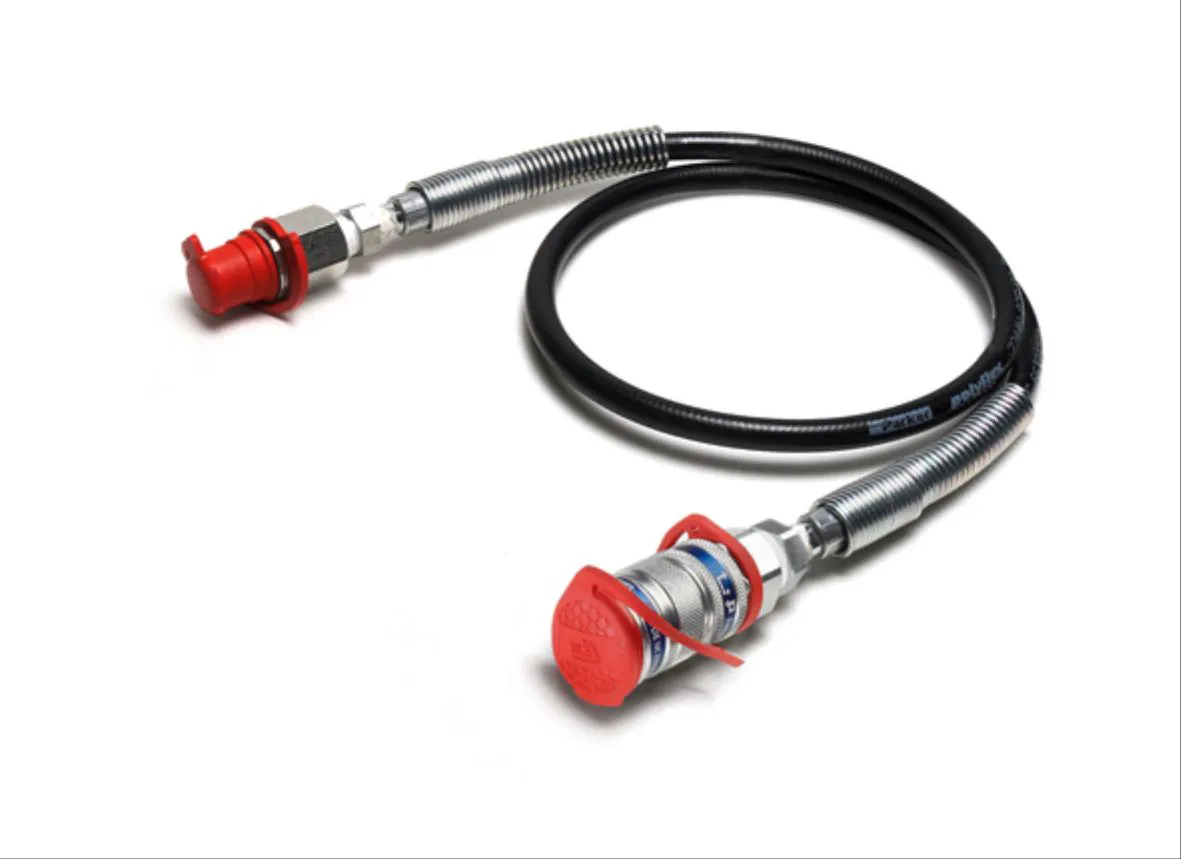

90 cm High-Pressure Hydraulic Hose
The tool includes a 90 cm flexible high-pressure hose.
The hydraulic system uses automatic-locking quick couplers for fast connection to compatible Cembre hydraulic equipment. Therefore, operators can position the connected head separately from the pump while keeping both within easy reach.
For example, this arrangement is particularly useful when working with hydraulic crimping or cutting heads in substations, switchboards and field maintenance applications.
Battery Operation and Portable Design
The compact pump weighs approximately 4 kg in operating configuration.
Consequently, operators can move it easily between work locations or carry it alongside the connected hydraulic head.
Furthermore, an ergonomic handle and compact housing assist with handling during field use.
LED lights illuminate the work area. Meanwhile, low operating noise and vibration help improve usability.
SMARTOOL Technology
Cembre SMARTOOL technology provides digital support for the hydraulic pump.
The system records operating data and allows users to display and download stored information. Therefore, organisations can access useful records for tool management and maintenance purposes.
In addition, a USB cable forms part of the current Cembre supply configuration for transferring recorded data.
Compatible Cembre Hydraulic Heads
The pump supplies hydraulic power to compatible Cembre crimping, cutting and specialist hydraulic heads.
Depending on the connected head, applications can include:
- Electrical connector crimping
- Large cable lug crimping
- Copper and aluminium cable cutting
- Conductor cutting
- Other compatible 700 bar hydraulic applications
However, always confirm the operating pressure, hydraulic oil requirements and coupling compatibility of the selected head before use.
View our range of Cembre Crimping and Cutting Tools for compatible hydraulic tooling and accessories.
B1300PL Technical Specifications
Manufacturer: Cembre
Part Number: B1300PL
Product Type: Portable battery-powered electro-hydraulic pump
Maximum Hydraulic Pressure: 700 bar
Supply Voltage: 18V
Power Source: Battery-powered electric motor
Hydraulic System: Twin speed
Pressure Control: Maximum-pressure valve
Pressure Release: Manual
Hydraulic Hose Length: 90 cm
Hydraulic Connection: Automatic-locking quick couplers
Operating Temperature: -15°C to +50°C
Operating Weight: Approx. 4 kg
Dimensions: 354 x 239 x 103 mm
Digital Support: SMARTOOL

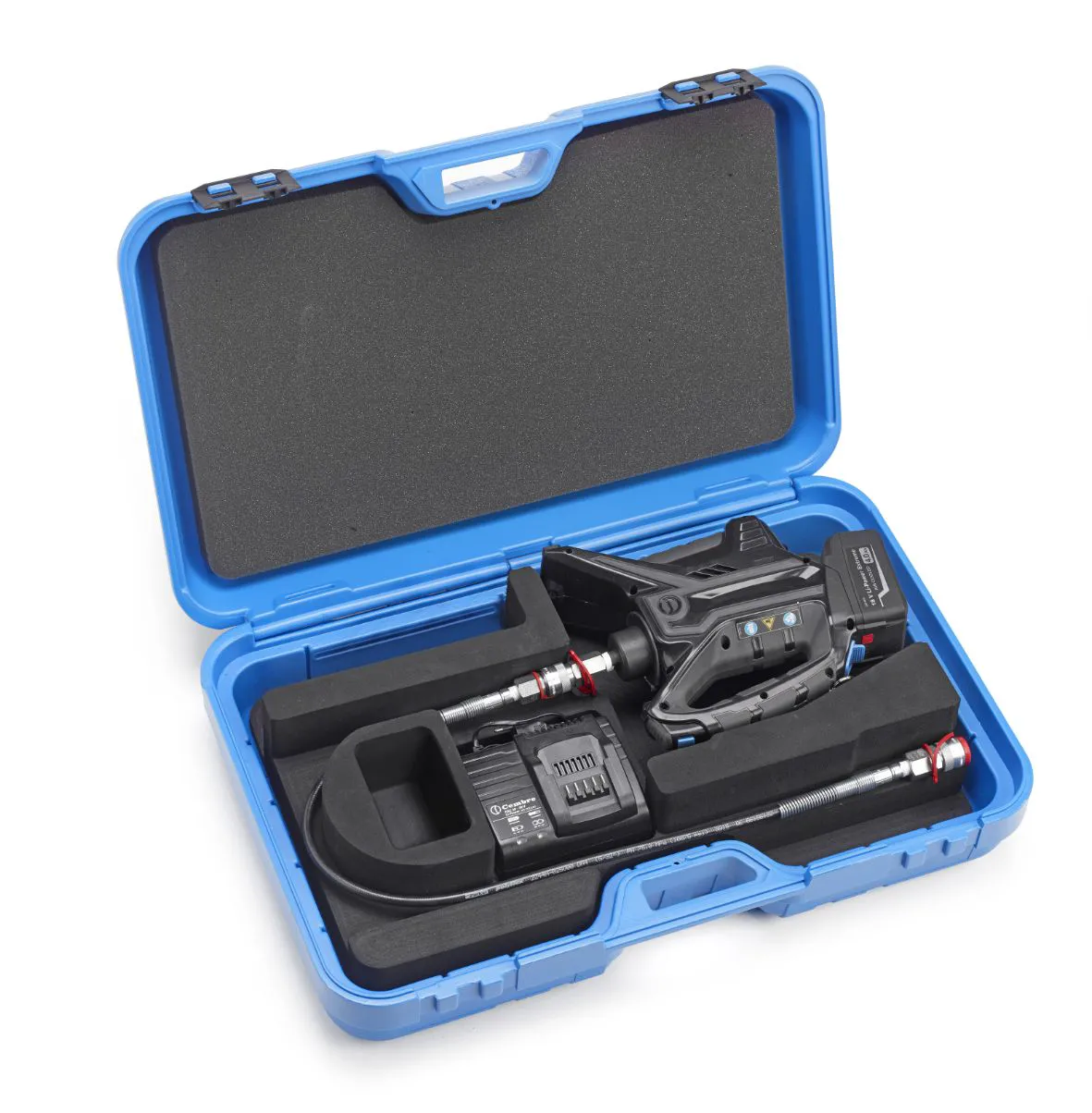

B1300PL Kit Contents
The current Cembre supply configuration includes:
- B1300PL electro-hydraulic pump
- CB1852L 18V battery
- Battery charger
- 90 cm flexible hydraulic hose
- USB cable
- Shoulder strap
- VAL-P44 plastic carrying case
- CVB-013 canvas bag
However, charger configuration may vary by market. Therefore, Australian supply should use the appropriate charger for local requirements.
B1300PL Key Features
- Portable 18V battery operation
- Hydraulic pressure up to 700 bar
- Twin-speed hydraulic system
- 90 cm flexible high-pressure hose
- Automatic-locking hydraulic quick couplers
- Maximum-pressure valve
- Quick pressure release
- Protected operating button
- LED work lights
- SMARTOOL operating data
- Compact 4 kg operating weight
- Ergonomic carrying handle
Australian Supply, Service and Support
Engineering Supplies supplies the Cembre B1300PL together with compatible hydraulic heads, hoses, couplings, accessories and spare parts.
In addition, we provide Australian maintenance and repair support through our Tool Maintenance & Repair service.
You can also view our complete range of Cembre Crimping and Cutting Tools.
Finally, for current manufacturer specifications and technical information, visit the Cembre B1300PL Official Product Page.
