Description

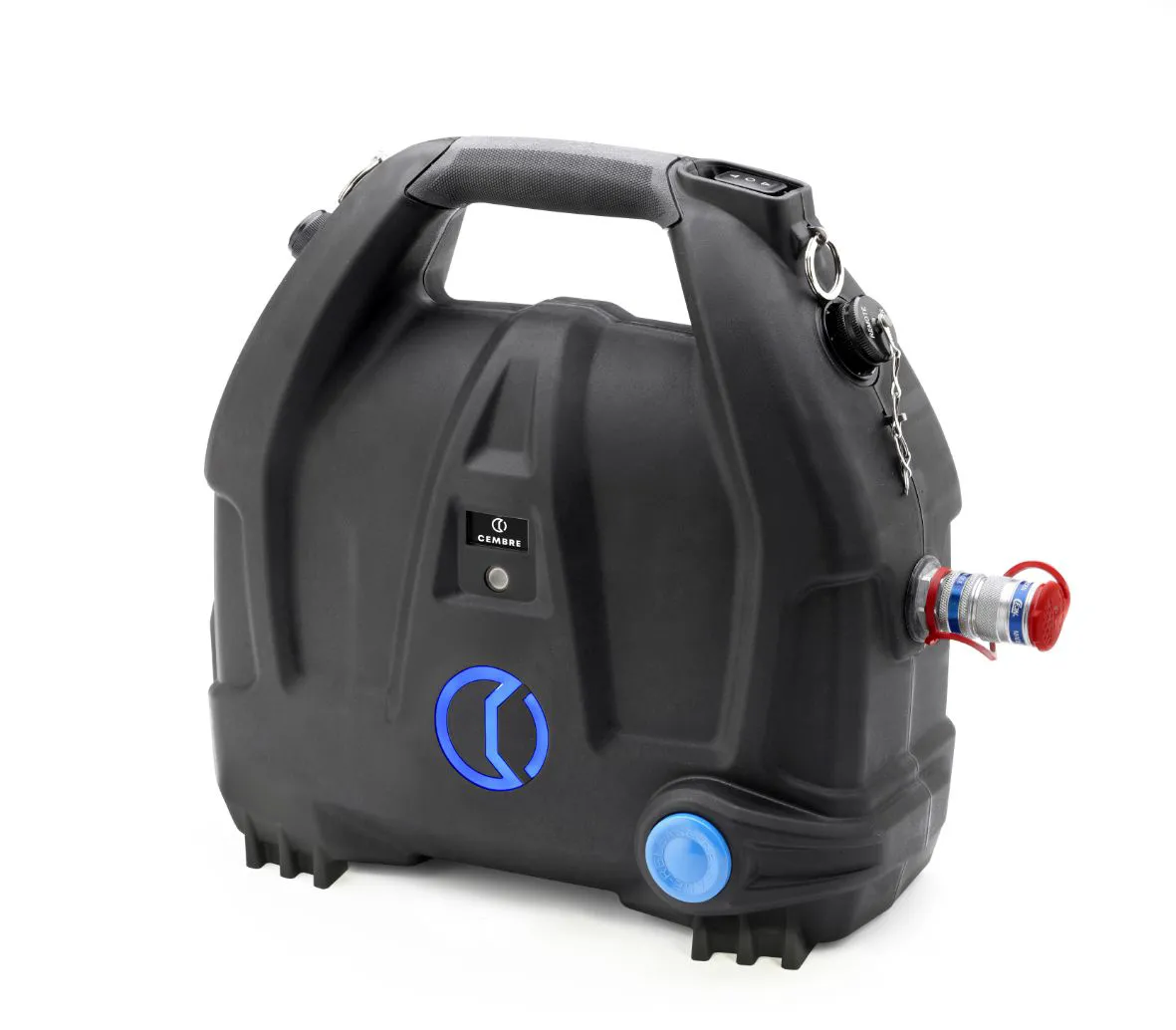

The Cembre B70M-P36T is a heavy-duty 36V battery-powered electro-hydraulic pump for operating compatible Cembre hydraulic heads.
It develops hydraulic pressure up to 700 bar while providing completely cordless operation. Therefore, operators can power large hydraulic crimping, cutting and punching heads without relying on mains electricity or a manual hydraulic pump.
The B70M-P36 platform also includes a 3 m high-pressure hose, remote control, OLED display, EPS pressure monitoring, Smart Release and SMARTOOL digital technology.
B70M-P36T Battery Hydraulic Pump
The pump uses a high-capacity 36V Li-Ion battery to provide independent hydraulic power in the field.
Its two-speed hydraulic system helps reduce operating times. First, the pump rapidly supplies hydraulic oil to advance the connected head. Then, the hydraulic system provides the pressure required to complete the operation.
As a result, the B70M-P36T combines fast head movement with hydraulic pressure up to 700 bar.
B70M-P36 700 Bar Hydraulic System
The hydraulic system incorporates EPS electronic pressure sensing to monitor operating pressure.
In addition, Cembre includes a maximum-pressure relief valve and dedicated quick pressure-release system.
Smart Release technology can also manage depressurisation after the operating cycle. However, operators can release hydraulic pressure manually whenever required.
Therefore, the pump provides controlled hydraulic operation across a wide range of compatible applications.
3 Metre High-Pressure Hydraulic Hose

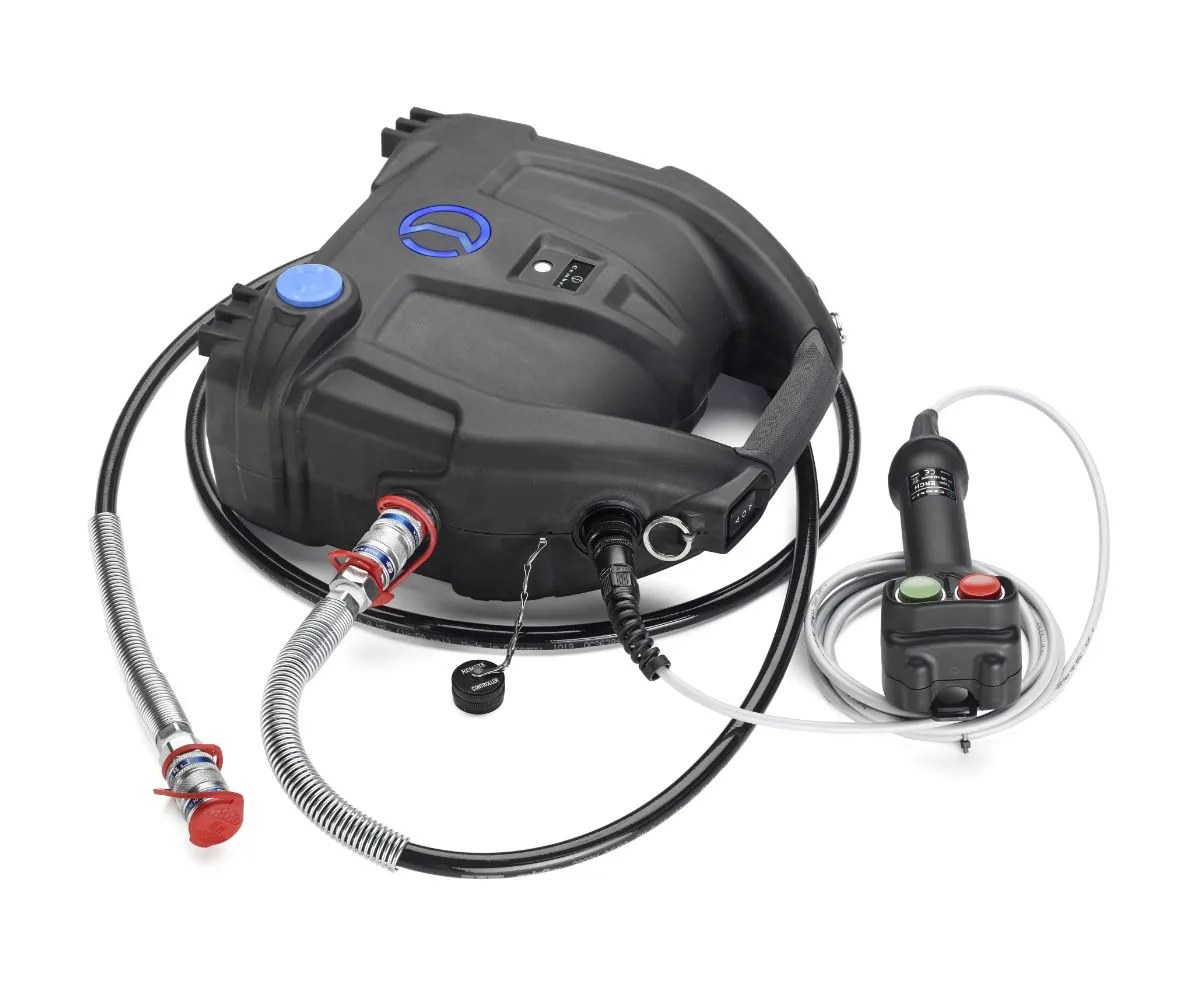

The B70M-P36T uses a 3 m flexible high-pressure hose with male and female automatic-locking quick couplings.
The extended hose allows the hydraulic pump to remain away from the working head. As a result, operators have greater freedom when positioning large crimping, cutting or punching heads.
For example, this arrangement can be particularly useful in substations, switchboards, cable installations, industrial plants and field maintenance applications.

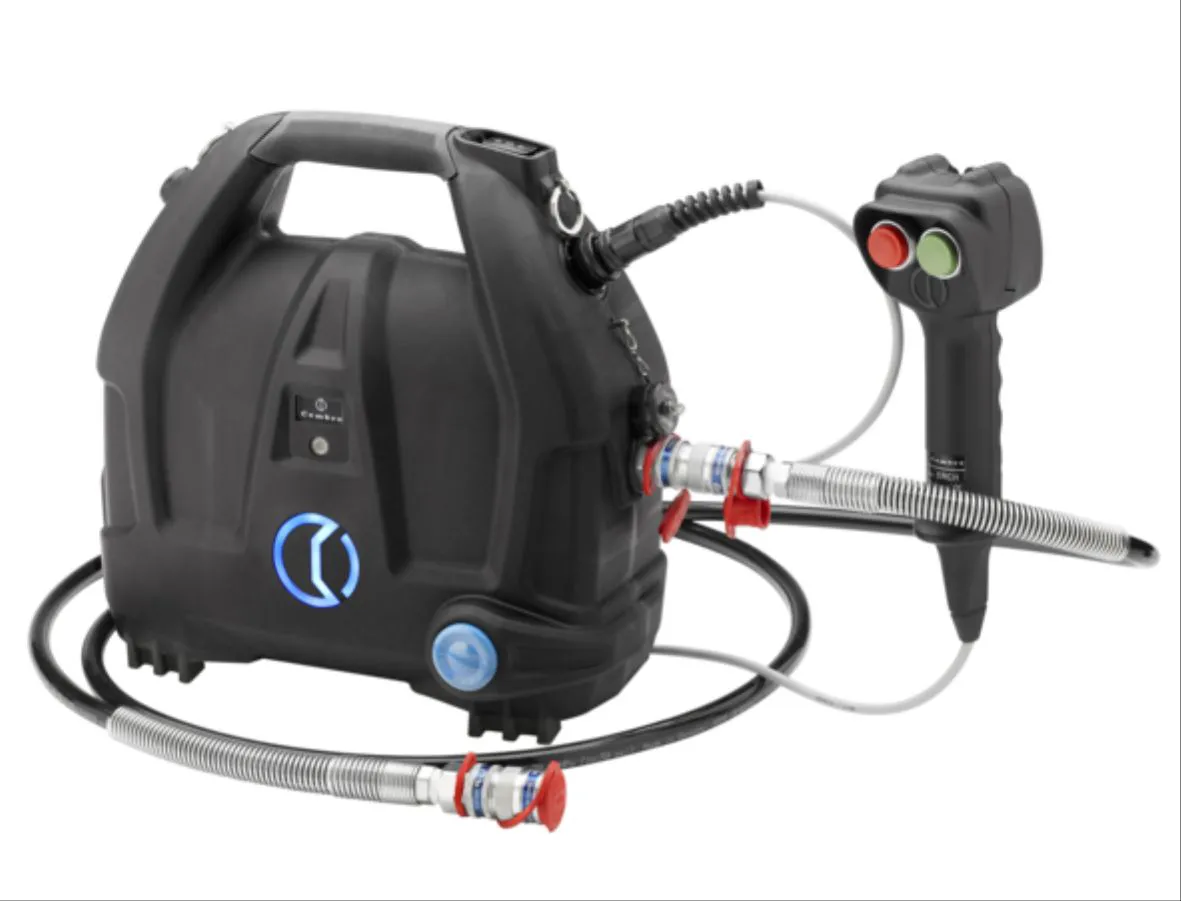

B70M-P36T Remote Control Operation
Operators can control the pump directly from the controls mounted on the unit.
In addition, the standard configuration includes an ERCH remote controller. Therefore, the operator can concentrate on positioning the connected hydraulic head while controlling the operating cycle remotely.
A protected start control also helps reduce accidental activation.
OLED Display and Smart Logo
The pump includes an integrated OLED display for real-time monitoring of key operating information.
Furthermore, Cembre’s Smart Logo changes status to provide the operator with immediate visual feedback about the pump’s operating condition.
This can indicate different stages of operation and help operators identify the pump’s current status quickly.
B70M-P36 SMARTOOL Technology
Cembre SMARTOOL technology provides digital recording and management of operating data.
The system allows users to view and download stored information. Therefore, organisations can access useful records for tool management, maintenance and operational traceability.
A USB cable is also included in the current supply configuration.
IP44M Protection for Field Use
The B70M-P36 platform provides an IP44M ingress protection rating.
In addition, its compact and robust housing is designed for demanding field conditions.
The pump operates across a temperature range of -15°C to +50°C. Therefore, it suits a wide range of utility, industrial and infrastructure environments.
Compatible Cembre Hydraulic Heads
The B70M-P36T provides hydraulic power for compatible 700 bar Cembre heads.
Depending on the connected head, applications can include:
- Heavy-duty electrical connector crimping
- Large cable lug crimping
- Copper and aluminium cable cutting
- Conductor cutting
- Hydraulic sheet-metal punching
- Other compatible 700 bar hydraulic operations
For example, the pump can power compatible hydraulic crimping heads such as the Cembre RHC131 130 kN Hydraulic Crimping Head and Cembre ECW-H3D 230 kN Hydraulic Crimping Head.
However, always confirm the pressure, oil displacement and hydraulic coupling requirements of the selected head before operation.
B70M-P36T vs B1300PL
Both the B70M-P36T and Cembre B1300PL Battery Hydraulic Pump provide portable 700 bar hydraulic power.
However, the B70M-P36T is a larger 36V heavy-duty hydraulic power unit with a 3 m hose and remote control.
In comparison, the B1300PL is a lighter and more compact 18V pump with a shorter hydraulic hose.
Therefore, the B1300PL works well where portability and low weight are priorities. Meanwhile, the B70M-P36T better suits heavier-duty applications, larger hydraulic heads and situations where greater working distance between the pump and head is useful.
B70M-P36T Technical Specifications
Manufacturer: Cembre
Part Number: B70M-P36T
Product Platform: B70M-P36
Product Type: Portable battery-powered electro-hydraulic pump
Maximum Hydraulic Pressure: 700 bar
Supply Voltage: 36V
Power Source: Li-Ion battery
Hydraulic System: Twin speed
Pressure Control: EPS electronic pressure sensor
Pressure Release: Manual and Smart Release Technology
Hydraulic Hose Length: 3 m
Display: OLED
Digital Technology: SMARTOOL
Status Indicator: Smart Logo
Ingress Protection: IP44M
Operating Temperature: -15°C to +50°C
Operating Weight: Approx. 10 kg
Dimensions: 405 x 335 x 161 mm
Australian Charger: AUS/NZ Type I configuration
B70M-P36T Kit Contents
The Australian configuration includes the B70M-P36 pump platform together with equipment for portable field operation.
The supply configuration includes:
- B70M-P36T electro-hydraulic pump
- 36V Li-Ion battery
- AUS/NZ battery charger
- ERCH remote controller
- 3 m high-pressure hydraulic hose
- USB cable
- Shoulder strap
- CVB-037 canvas carrying bag
The Australian B70M-P36T variant uses the appropriate AUS/NZ charger rather than the European charger shown on the generic B70M-P36 manufacturer page.
B70M-P36T Hydraulic Pump Features
- Portable 36V battery operation
- Hydraulic pressure up to 700 bar
- Twin-speed hydraulic system
- 3 m high-pressure flexible hose
- Automatic-locking hydraulic quick couplings
- ERCH remote control
- EPS electronic pressure monitoring
- OLED display
- Smart Logo operating status indicator
- SMARTOOL data recording
- Smart Release technology
- Manual pressure release
- Maximum-pressure relief valve
- IP44M protection
- Australian charger configuration
Australian Supply, Service and Support
Engineering Supplies supplies the Cembre B70M-P36T together with compatible hydraulic crimping heads, cutting heads, punching heads, hoses, couplings, accessories and spare parts.
In addition, we provide Australian servicing and maintenance support for Cembre hydraulic equipment through our Tool Maintenance & Repair service.
You can also view our complete range of Cembre Crimping and Cutting Tools.
Finally, for complete manufacturer specifications and current technical information, visit the Cembre B70M-P36 Official Product Page.
