Description

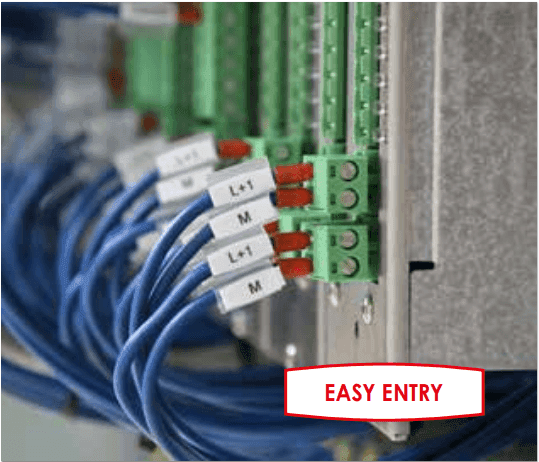

Precut 4mm Push-In Markers – Easy Entry for PMF Holders
SerieFLAT MG-TPMF tags are designed for marking cables, conduits, tubes, conductors, and components. Supplied in stem format, the tags can be easily snapped off their stems and inserted into the appropriate holders.
Please consult us for availability in other colours. Note: UV resistance may vary depending on the colour.
Material: Rigid PVC, self-extinguishing, classified as V0 according to UL94. The colours white (PVC10050WH) and yellow (PVC10050YE) are UL approved.
Operating Temperature Range: -30°C to +60°C.
| Family | Size mm | Part Number | Box Quantity |
| MG-TPMF | 4 x 10 | CEM-42090B | 5600 |
| 4 x 12 | CEM-42091B | 4000 | |
| 4 x 15 | CEM-42092B | 4000 | |
| 4 x 18 | CEM-42094B | 1600 | |
| 4 x 20 | CEM-42093B | 1600 | |
| 4 x 30 | CEM-42096B | 1200 | |
| 4 x 40 | CEM-42097B | 800 |
4mm Push-In Markers – For PM Holders
MG-TPM tags are used for marking cables, conduits, tubes, and equipment. Supplied in stem format, the tags are easily snapped off their stems and inserted into the appropriate holders.
Material: Polycarbonate, halogen-free, self-extinguishing, classified as V0 according to UL94. The colours white (PC10300WH) and yellow (PC10400YE) are EN 45545-2 approved.
Operating Temperature Range: -40°C to +130°C.
| Family | Size mm | Part Number | Box Quantity |
| MG-TPM | 4 x 10 | CEM-40090 | 2250 |
| 4 x 12 | CEM-40091 | 2250 | |
| 4 x 15 | CEM-40092 | 2250 | |
| 4 x 18 | CEM-40093 | 2250 |
