Cembre Rail Connection Systems
Engineering Supplies supplies Cembre rail connection systems for railway signalling, traction return, continuity bonding and earthing applications.
Browse Cembre AR rail web bush connections, installation tools, accessories and consumables below, or contact our team for product selection and technical support.
Showing 1–16 of 29 resultsSorted by popularity

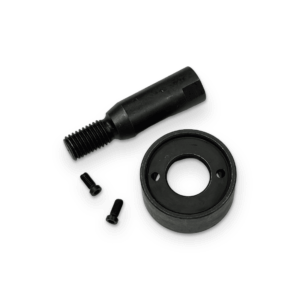

Cembre Rail Connection SystemsAR60.41-INST
The Cembre AR60.41-INST is the dedicated installation kit required for fitting AR60A-41 double-sided rail web bush connections on 40–44 mm thick rail webs, including 40TAL rail.
Designed for use with the Cembre HTEP or B1300TEP-T hydraulic installation tools, the kit adapts the standard AR installation system for correct installation of the AR60A-41 thick-web connection.
Cembre Rail Connection SystemsCembre VASCO5000 Rail Drill Coolant
Cembre VASCO5000 is a biodegradable, vegetable-based lubricating coolant concentrate recommended for Cembre rail drills, broach cutters and AR rail connection installations.
Mixed at 5% concentrate to 95% water, VASCO5000 provides effective lubrication and cooling during rail drilling. When used for drilling Cembre AR connection holes, the hole does not require drying before installation of the AR bush.
Available in 3 L, 10 L and 25 L containers.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.

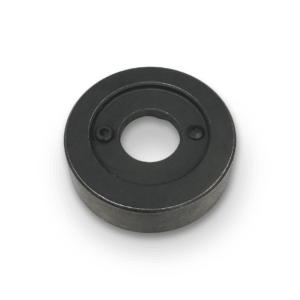

Cembre Rail Connection SystemsAR260 WASHER KIT
The Cembre AR260 Washer Kit is the dedicated installation accessory required for the Cembre AR260D double-sided rail web bush connection.
Specifically, it incorporates the Ø38 mm installation washer used with the OG13.2 mandrel and RHTEP-S installation head.
P/N: AR260 WASHER KIT (HTEP/AR260WASHER)
For pricing and availability, contact Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au.
Cembre Rail Connection SystemsAR67-INST
AR67 Installation Kit
Get a Quote
Contact us for a quote by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsOG13.2
Installers use the Cembre OG13.2 Mandrel to install AR60D, AR260D and AR65 rail web bush connection kits.
Suitable for use with the B1300TEP-T battery hydraulic installation tool and HTEP manual hydraulic installation tool, it provides controlled expansion of the Cembre AR bush during installation.
P/N: OG13.2
For pricing, availability or technical assistance, contact Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au.
Cembre Rail Connection SystemsAR260L
The Cembre AR260L provides a permanent, double-sided electrical connection through rail webs 16.5–19.0 mm thick, suiting heavy haul railway and signal track circuit applications.
Specifically, installation uses a 19 mm drilled hole and the OG13.2 or OG13.2T mandrel to create an M12 electrical connection without welding.
P/N: AR260L
For pricing and availability, contact Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au.
Cembre Rail Connection SystemsAR60A-41
The Cembre AR60A-41 provides a permanent, double-sided electrical connection through rail webs 40–44 mm thick, suiting heavy-haul rail such as 40TAL.
Specifically, installation uses a 19 mm drilled hole and the dedicated AR60.41-INST kit to create an M12 electrical connection without welding.
P/N: AR60A-41
For pricing and availability, contact Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au.
Cembre Rail Connection SystemsRHTEPE-16
Cembre RHTEPE-16 Hydraulic Bush Installation Head
The Cembre RHTEPE-16 hydraulic head is designed for the controlled installation of AR6516 rail web bush connections. Used with compatible Cembre hydraulic tooling and the OG16.2T mandrel, it provides a reliable and repeatable method of installing permanent rail electrical contacts.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsAR6516
Cembre AR6516 Rail Web Bush Connection Kit
The Cembre AR6516 Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection to the rail web for signalling, traction return, continuity bonding and earthing applications.
Designed for reliable installation without welding, the AR6516 is suitable for 14–16.5 mm rail web thickness and uses a mechanically expanded bush to create a durable, gas-tight electrical connection.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsCembre AR65 Rail Web Bush Connection Kit
The Cembre AR65 Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection to the rail web for signalling, traction return, continuity bonding and earthing applications.
Designed for 14–16.5 mm rail web thickness, the single-sided AR65 uses a mechanically expanded bush in a 22 mm rail web hole to create a durable, gas-tight electrical connection without welding.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsAR66D
Cembre AR66D Rail Web Bush Connection Kit
The Cembre AR66D Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection to the rail web for signalling, traction return, continuity bonding and earthing applications.
Designed for 14–16.5 mm rail web thickness, the AR66D uses a mechanically expanded bush installed into a 13.5 mm rail web hole and provides an M10 electrical connection without requiring welding.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.

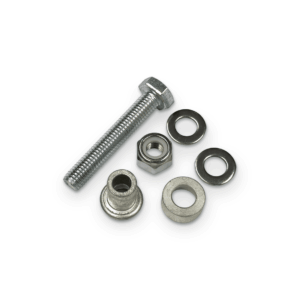

Cembre Rail Connection SystemsAR266D-16.5
Cembre AR266D-16.5 Rail Web Bush Connection Kit
The Cembre AR266D-16.5 Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection to the rail web for signalling, traction return, continuity bonding and earthing applications.
Designed for 14–16.5 mm rail web thickness, the double-sided bush system uses mechanical expansion to create a durable, gas-tight electrical connection without welding.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.- Cembre Rail Connection Systems
AR260D
Cembre AR260D Double-Sided Rail Web Bush Connection Kit
The Cembre AR260D Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection through the rail web with two connection points from opposite sides of the rail.
Designed for 14–16.5 mm rail web thickness, the AR260D uses a mechanically expanded bush installed into a 19 mm rail web hole and provides M12 electrical connections without requiring welding.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsAR60D
Cembre AR60D Rail Web Bush Connection Kit
The Cembre AR60D Rail Web Bush Connection Kit provides a permanent, low-resistance electrical connection to the rail web for signalling, traction return, continuity bonding and earthing applications.
Designed for 14–16.5 mm rail web thickness, the AR60D uses a mechanically expanded bush installed into a 19 mm rail web hole and provides an M12 electrical connection without requiring welding.
Get a Quote
Contact Engineering Supplies for pricing, availability or technical assistance by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre Rail Connection SystemsB1300TEP-T
Cembre B1300TEP-T Battery-Hydraulic Rail Bush Installation Tool for installing Cembre AR rail web electrical connections, including AR60D, AR260D and AR65. Fast, portable hydraulic operation with an 18V battery-powered pump.
Get a Quote
Contact us for pricing and availability by calling (08) 9258 8444 or emailing sales@engsup.com.au.
Cembre rail drill bits and broach cuttersCY Broach Cutters
CY Broach Cutters
Get a Quote
Contact us for a quote by calling (08) 9258 8444 or emailing sales@engsup.com.au.
