Description
Specifically, the Cembre ECW-H3D is a heavy-duty hydraulic crimping head for electrical connectors on conductors from 10 to 630 mm².
It develops 230 kN of nominal crimping force and connects to a suitable hydraulic pump through an automatic-locking male quick coupler. Therefore, the head provides a powerful solution for large cable lugs, connectors and electrical terminations.
Overall, the ECW-H3D suits utility, mining, infrastructure, industrial and other heavy-duty electrical applications where higher crimping force and large conductor capacity are required.

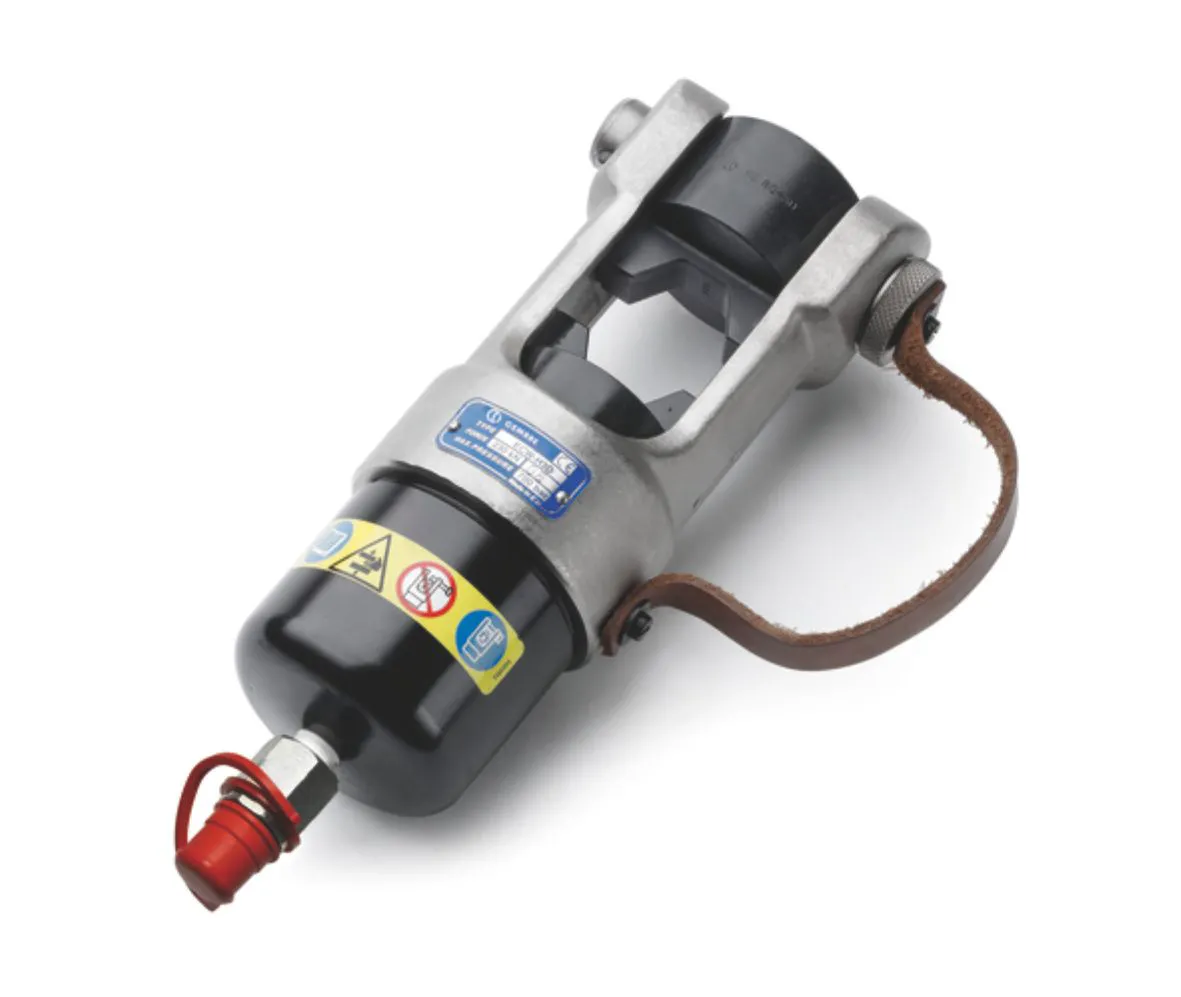

ECW-H3D Hydraulic Crimping Head
In particular, the hydraulic head uses a U-shaped design with a removable retaining pin for fitting the required crimping dies.
Its hydraulic system operates at a maximum pressure of 700 bar. In addition, the head requires approximately 91 cm³ of hydraulic oil displacement for operation.
Generally, the quick-connect hydraulic coupling allows operators to connect the head to a suitable Cembre hydraulic, pneumatic or electro-hydraulic pump.
230 kN Crimping Force
Indeed, the ECW-H3D develops 230 kN of crimping force, making it suitable for electrical connectors on conductors from 10 to 630 mm².
Depending on the connector and selected die, the head supports several crimping profiles, including:
- Hexagonal crimping
- Indent crimping
- Oval crimping
- Radial crimping
Therefore, operators can use the same hydraulic head across a wide range of heavy-duty electrical connection applications.
Always select the correct die for the connector type, conductor size and required crimp profile.
ECW-H3D Crimping Die Compatibility
In general, the head accepts standard die sets used with compatible Cembre 230 kN crimping tools and heads.
In addition, Cembre offers an adapter system that allows the head to use compatible semi-circular dies from its 130 kN tooling range.
Furthermore, this provides additional flexibility for organisations that already operate other Cembre hydraulic crimping equipment.
Cembre also offers dedicated dies for DIN-compliant electrical connectors.
Crimping dies and adapters are sold separately unless otherwise specified.
Hydraulic Cutting Die Capability
The ECW-H3D can do more than crimp electrical connectors.
With the appropriate Cembre cutting dies, the hydraulic head can also support cutting applications for compatible:
- Copper conductors
- Aluminium conductors
- Aldrey conductors
- Aluminium-steel conductors
Therefore, the head can form part of a flexible hydraulic tooling system for both crimping and selected conductor cutting applications.
Always confirm the correct cutting die and conductor compatibility before use.
ECW-H3D 700 Bar Hydraulic Operation
In essence, the head requires a compatible hydraulic pump with a maximum operating pressure of 700 bar.
Its automatic-locking male quick coupler provides a fast hydraulic connection. As a result, operators can connect and disconnect the head from compatible Cembre hydraulic equipment when the system is fully depressurised.
Consequently, a hydraulic pump is not included with the head and must be selected separately.
View our range of Cembre Crimping and Cutting Tools for compatible hydraulic equipment and accessories.
ECW-H3D Technical Specifications
Manufacturer: Cembre
Part Number: ECW-H3D
Product Type: Hydraulic crimping head
Nominal Crimping Force: 230 kN
Conductor Range: 10–630 mm²
Maximum Operating Pressure: 700 bar
Required Oil Displacement: 91 cm³
Head Type: U-shaped head with retaining pin
Crimping Profiles: Hexagonal, indent, oval and radial
Pressure Release: Manual
Hydraulic Connection: Automatic-locking male quick coupler
Operating Temperature: -15°C to +50°C
Dimensions: 290 x 120 x 90 mm
Weight: Approx. 5.5 kg
Hydraulic Pump: Required separately
Crimping Dies: Required separately
Key Features
- 230 kN nominal crimping force
- Electrical connector range from 10 to 630 mm²
- Heavy-duty U-shaped crimping head
- 700 bar hydraulic operation
- Automatic-locking hydraulic quick coupler
- Hexagonal, indent, oval and radial crimping capability
- Compatible with Cembre 230 kN dies
- Compatible with selected 130 kN dies using the appropriate adapter
- Supports selected cutting dies
- Compact 5.5 kg hydraulic head
Australian Dies, Service and Support
Engineering Supplies supplies the Cembre ECW-H3D together with compatible crimping dies, adapters, hydraulic equipment, accessories and spare parts.
In addition, we provide Australian maintenance and repair support for Cembre hydraulic tools through our Tool Maintenance & Repair service.
Finally, for complete manufacturer specifications and current die compatibility, visit the Cembre ECW-H3D Official Product Page.
