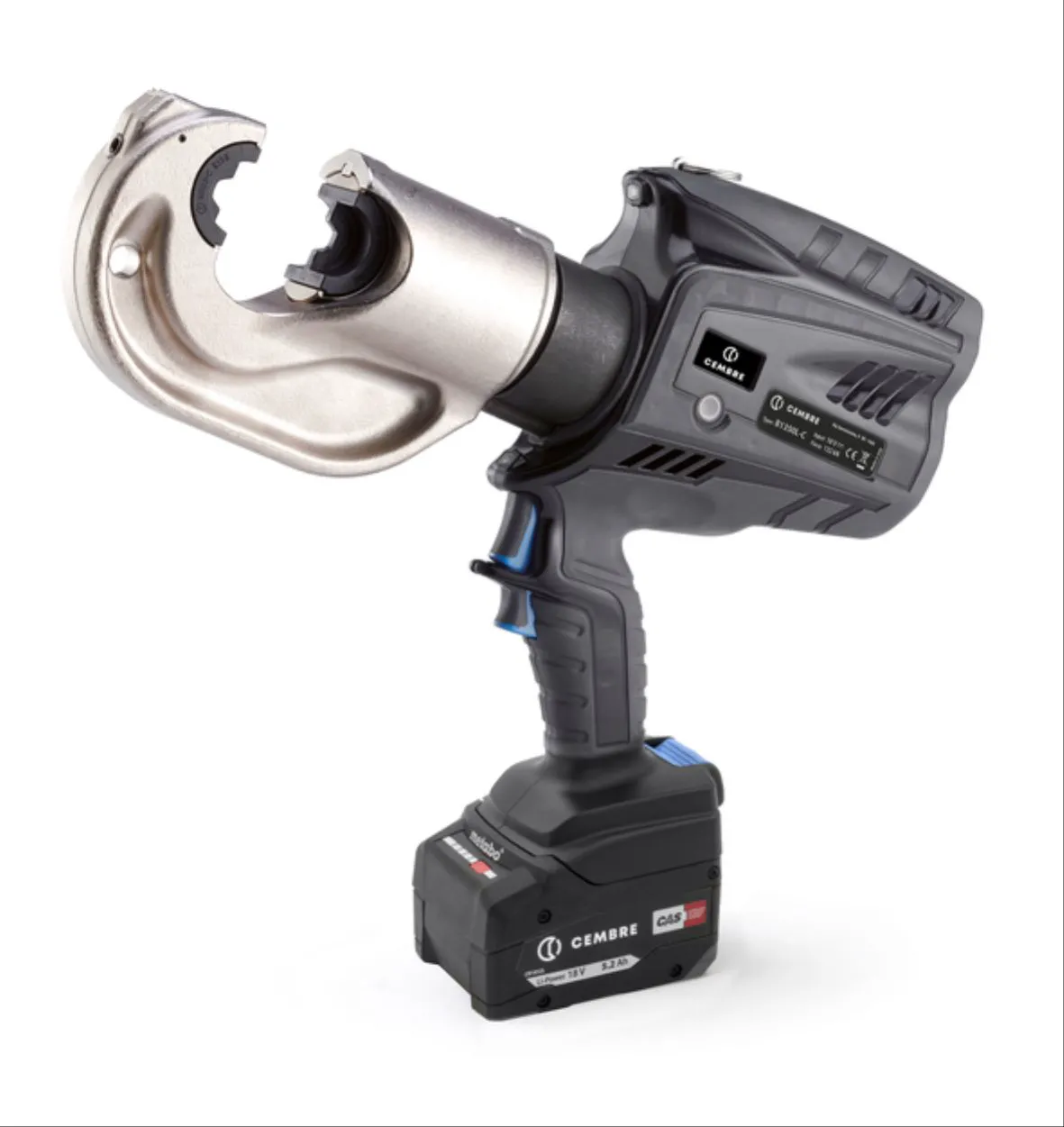

B1350L-CT Crimping Tool

Description

The Cembre B1350L-CT crimping tool is a heavy-duty 18V battery hydraulic crimper for installing electrical compression connectors on conductors from 10 to 400 mm².

It develops 132 kN of nominal crimping force and uses the standard die system shared with compatible Cembre 130 kN tools and heads.

However, the B1350L-CT features an enlarged 42 mm C-head opening. Therefore, operators gain extra clearance around large connectors and can remove the tool from the crimping area more easily after completing a crimp.

The B1350L-CT combines powerful hydraulic performance with a compact pistol-grip design.

Its cordless 18V hydraulic system eliminates the need for an external hydraulic pump or hose. As a result, the tool suits field installation, switchboard, utility, infrastructure and industrial applications.

In addition, the ergonomic handle provides comfortable operation during repetitive crimping work.

B1350L-CT 42 mm C-Head

The major advantage of the B1350L-CT crimping tool is its enlarged open C-head.

The head provides an opening of up to 42 mm and rotates through 180°. Therefore, operators can position the crimper more easily around cables and connectors.

The additional clearance is particularly useful with large terminals or installations where removing a standard C-head tool after crimping can be difficult.

In comparison, the standard B1350-CT uses a smaller C-head configuration.

132 kN Battery Hydraulic Crimping

The tool develops 132 kN of nominal crimping force and supports electrical connectors on conductors from 10 to 400 mm².

Depending on the connector and selected die, supported crimping profiles include:

Hexagonal crimping
Indent crimping
Oval crimping
Radial crimping
Circular crimping

Therefore, one tool can support a broad range of electrical cable lug and connector applications.

However, always select the correct Cembre die for the connector, conductor size and required crimp profile.

B1350L-CT EPS Pressure Monitoring

The B1350L-CT uses an EPS electronic pressure sensor to monitor hydraulic pressure during each crimping cycle.

As a result, the tool can monitor the force developed during the crimp and provide operating feedback to the user.

In addition, a quick pressure-release button allows operators to release hydraulic pressure whenever required.

A protected run button also helps prevent accidental activation.

B1350L-CT OLED Display and SMARTOOL

An integrated OLED display provides real-time operating information.

For example, operators can monitor:

Crimping force
Battery charge status
Completed work cycles
Remaining cycles before maintenance
General tool operating information

Furthermore, Cembre SMARTOOL technology records operating data for digital review and download.

Therefore, users can access useful information for tool management, servicing and maintenance records.

LED lights also illuminate the working area.

B1350L-CT Crimping Die Compatibility

The B1350L-CT crimping tool uses the standard die system compatible with other Cembre 130 kN tools and hydraulic heads.

For example, suitable dies can also be used with products such as the Cembre RHC131 Hydraulic Crimping Head and HT131-C Manual Hydraulic Crimping Tool, subject to connector compatibility.

Therefore, businesses already using Cembre 130 kN tooling can share compatible dies across multiple tools.

Crimping dies are sold separately unless otherwise specified.

B1350L-CT vs B1350-CT

Both the B1350L-CT and Cembre B1350-CT Battery Hydraulic Crimping Tool provide 132 kN cordless hydraulic crimping for conductors up to 400 mm².

However, the main difference is the crimping head.

The B1350L-CT features an enlarged 42 mm C-head opening. Therefore, it offers additional clearance around large connectors and completed crimps.

In comparison, the standard B1350-CT is lighter and more compact.

As a result, the B1350-CT may suit applications where minimum tool size and weight are priorities, while the B1350L-CT is ideal where additional head clearance is more important.

B1350L-CT Crimping Tool Specifications

Manufacturer: Cembre
Part Number: B1350L-CT
Product Family: B1350L-C
Product Type: Battery hydraulic crimping tool
Nominal Crimping Force: 132 kN
Crimping Range: 10–400 mm²
Supply Voltage: 18V
Battery: CB1852L Li-Ion
Head Type: Enlarged open C-head
Head Opening: Up to 42 mm
Head Rotation: 180°
Crimping Profiles: Hexagonal, oval, radial, indent and circular
Pressure Monitoring: EPS electronic pressure sensor
Pressure Release: Manual
Display: OLED
Digital Support: SMARTOOL
Operating Temperature: -15°C to +50°C
Operating Weight: Approx. 8 kg
Dimensions: 385 x 349 x 83 mm
Crimping Dies: Sold separately

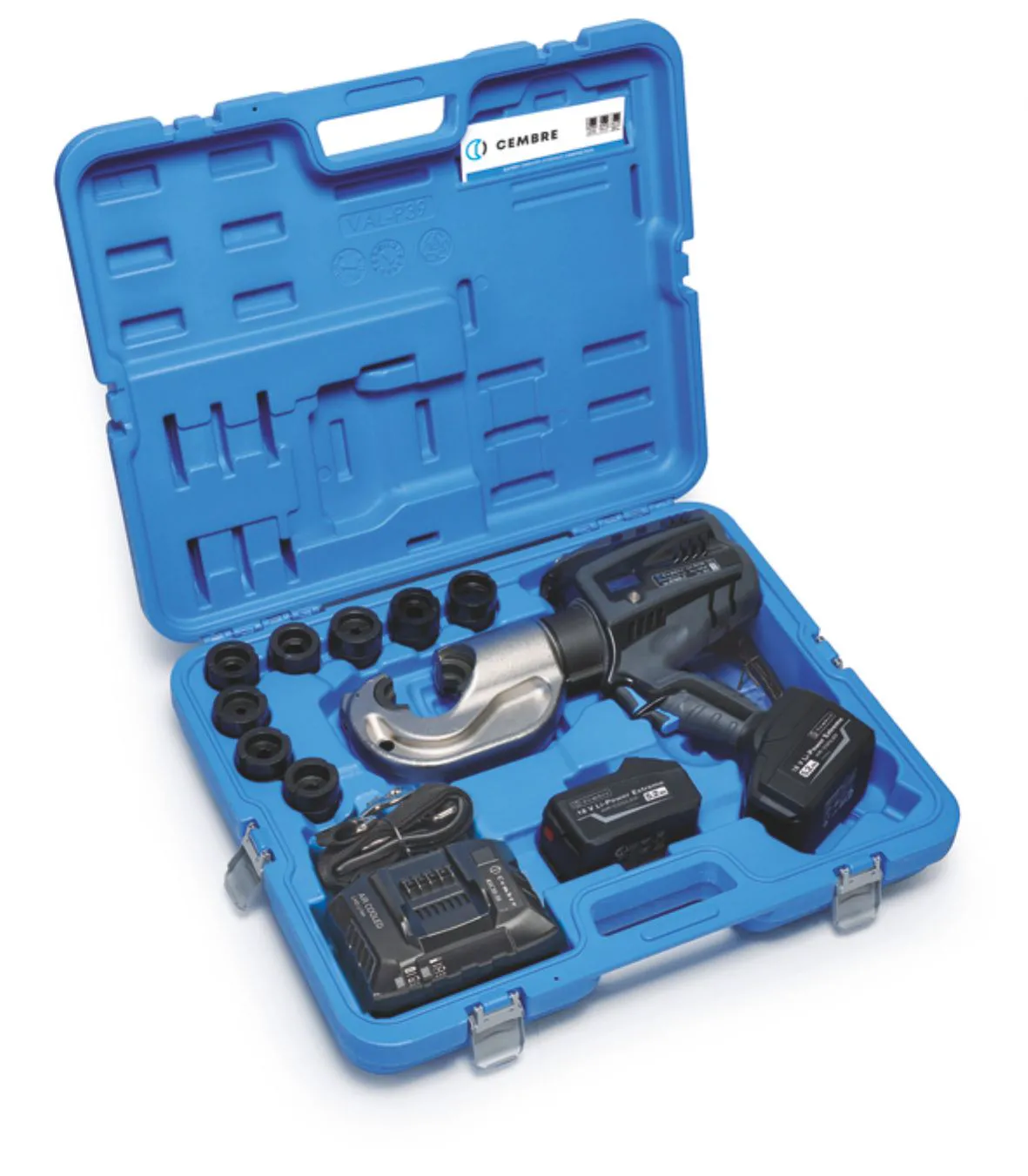

B1350L-CT Australian Kit Contents

The Australian configuration includes:

B1350L-CT battery hydraulic crimping tool
2 x CB1852L 18V Li-Ion batteries
ASC55-AUS/NZ battery charger
USB cable
Shoulder strap
VAL-P39 plastic carrying case

Therefore, the tool arrives ready for Australian field operation apart from the crimping dies required for the selected connectors.

B1350L-CT Crimping Tool Features

132 kN nominal crimping force
10–400 mm² conductor range
Enlarged 42 mm C-head opening
180° rotating head
Compact pistol-grip design
18V cordless hydraulic operation
EPS electronic pressure monitoring
OLED operating display
SMARTOOL digital data support
Quick hydraulic pressure release
Protected operating button
LED work lights
Two Li-Ion batteries supplied
Australian charger configuration
Compatible with standard Cembre 130 kN dies

B1350L-CT Australian Supply and Service

Engineering Supplies supplies the Cembre B1350L-CT crimping tool together with compatible Cembre crimping dies, electrical connectors, batteries, chargers, accessories and spare parts.

In addition, we provide Australian maintenance and repair support for Cembre battery hydraulic equipment through our Tool Maintenance & Repair service.

You can also view our complete range of Cembre Crimping and Cutting Tools.

Finally, for current manufacturer specifications and technical information, visit the Cembre B1350L-C Official Product Page.
