Description

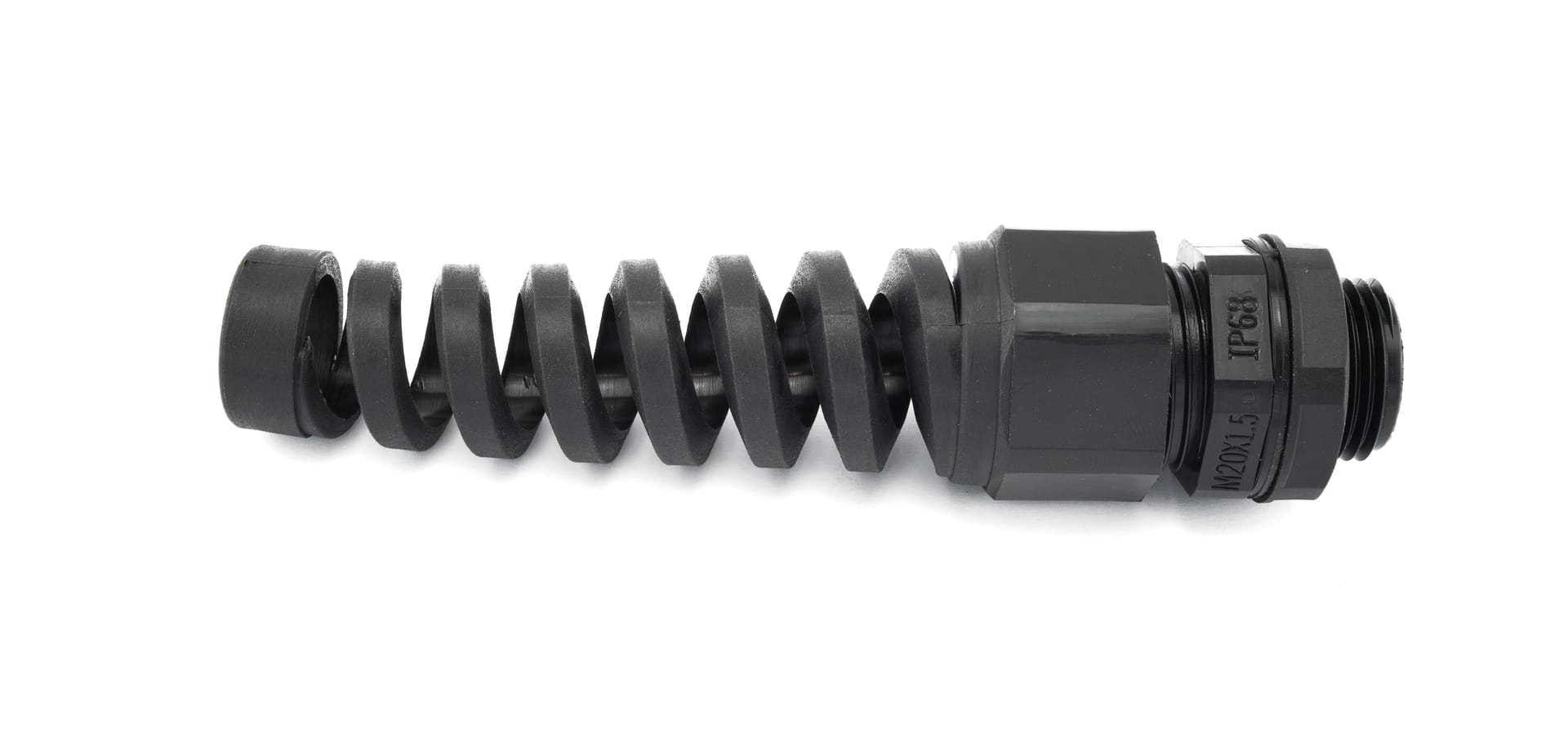

KSS Strain Relief Gland – AG20SR
The KSS strain relief gland combines a nylon compression cable gland with an extended flexible cable support.
KSS designed the AG20SR to help protect cables against breakage and sharp bending where they enter electrical panels, enclosures and equipment.
The gland uses a Nylon 66 body with a TPE sealing insert. When correctly installed, the compression system seals around the cable while the extended strain-relief section supports the cable as it exits the gland.
AG20SR Key Features
- M20 × 1.5 metric thread
- Suitable for 10–14mm cable outside diameter
- 20mm nominal mounting size
- Nylon 66 construction
- UL94V-2 flame-rated material
- TPE sealing insert
- PVC washer
- IP68 protection
- RoHS compliant
- Integrated flexible strain relief
- Helps protect cables against sharp bending
- Helps reduce stress at the cable entry point
- Black finish
The strain-relief design makes the AG20SR particularly useful where cables may move, flex or bend close to the enclosure entry.
KSS AG20SR Specifications
| Specification | AG20SR |
|---|---|
| Manufacturer | KSS |
| Part Number | AG20SR |
| Thread | M20 × 1.5 |
| Nominal Gland Size | 20mm |
| Mounting Hole | 20mm |
| Cable OD Range | 10–14mm |
| Thread Length | 15mm |
| Overall Length | 96.2mm |
| Body Material | Nylon 66 |
| Seal Material | TPE |
| Washer Material | PVC |
| Colour | Black |
| Protection | IP68 |
| Compliance | RoHS |
Select the gland according to both the M20 mounting requirement and the cable outside diameter.
Strain Relief Cable Gland Applications
The extended cable support makes this gland suitable for applications where cables may experience movement or bending.
Typical applications include:
- Machinery
- Motors and equipment
- Control panels
- Electrical enclosures
- Switchboards
- Industrial automation
- OEM equipment
- Pumps and mechanical equipment
- Mobile or vibrating equipment
- Instrumentation
- Cable entries exposed to repeated movement
By supporting the cable beyond the compression gland, the flexible extension helps reduce concentrated bending directly at the enclosure entry.
How the Strain Relief Design Works
A conventional cable gland clamps and seals around the cable at the point where it enters an enclosure.
The AG20SR adds an extended flexible support beyond that point. As a result, the cable bends over a longer distance rather than sharply at the gland exit.
This helps reduce mechanical stress on the cable sheath and conductors where movement or vibration occurs.
Standard Gland or Strain Relief Gland?
For fixed cable entries where additional bend protection is not required, our KSS Nylon Compression Cable Glands – Black provide a more compact solution.
Choose the AG20SR where the application benefits from additional support against cable bending or movement.
You can also browse our complete Cable Glands range for nylon, metal, industrial and hazardous-area cable glands.
Buy KSS AG20SR in Australia
Engineering Supplies stocks KSS AG20SR strain relief cable glands at our Perth warehouse for switchboard builders, electrical contractors, OEMs and industrial customers throughout Australia.
P/N: AG20SR
For stock availability or help selecting the correct cable gland, contact Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au.
For current technical data and dimensional information, visit the KSS Strain Relief Cable Gland range.
