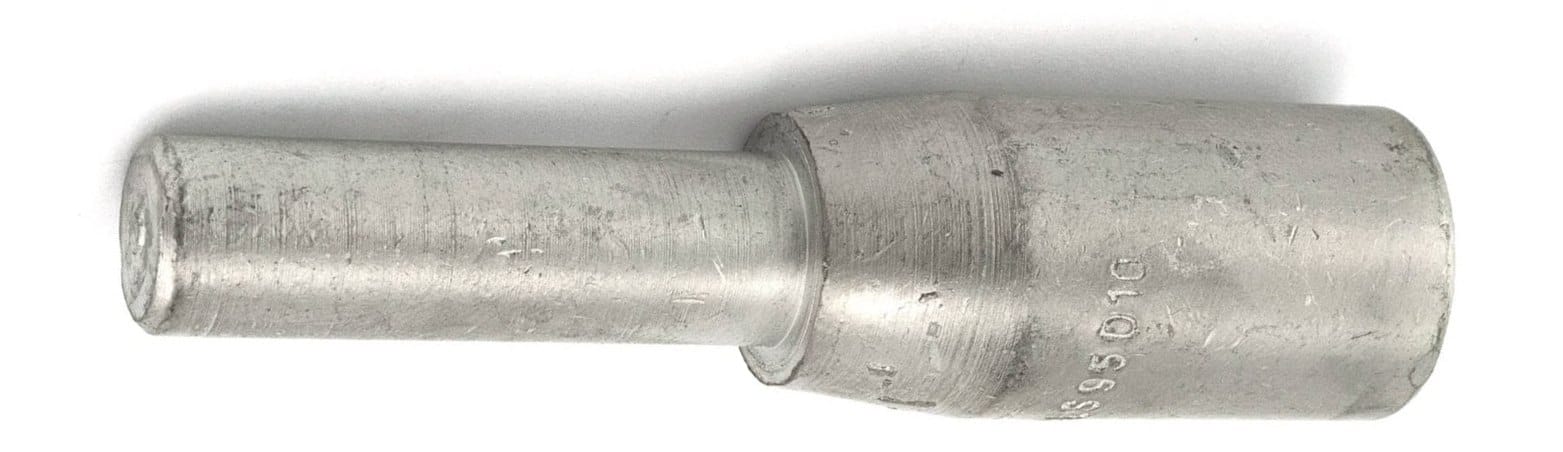

Termco Copper Stalk Lugs
Termco Copper Stalk Lugs provide a reliable crimp termination for copper conductors where a solid stalk or pin-style connection is required. They are particularly suited to compatible electrical equipment and clamp terminals where a conventional flat-palm cable lug is not suitable.
The Termco TCLS range combines a tubular copper crimp barrel with an extended solid copper stalk. In addition, the electro-tinned finish helps provide a practical termination solution for electrical, industrial, switchboard and power distribution applications.
Copper Stalk Lug Features
The range provides several conductor and stalk combinations to suit different equipment connections. Therefore, users can select the required cable size together with the appropriate stalk dimensions for the termination point.
Key features include:
- Copper crimp-type construction
- Electro-tinned finish
- Solid stalk connection
- Suitable for copper conductor termination
- Cable sizes from 35mm² to 120mm²
- Stalk widths of 8mm, 10mm and 16mm
- Stalk lengths of 34mm and 38mm
- Multiple conductor and stalk combinations
- Suitable for compatible electrical equipment clamp terminals
- Termco TCLS product range
Available TCLS Copper Stalk Lugs
Engineering Supplies stocks the following sizes:
- TCLS35D8 – 35mm² cable, 8mm stalk
- TCLS50D8 – 50mm² cable, 8mm stalk
- TCLS70D10 – 70mm² cable, 10mm stalk
- TCLS95D10 – 95mm² cable, 10mm stalk
- TCLS120D16 – 120mm² cable, 16mm stalk
For example, the TCLS35D8 uses a 34mm long, 8mm stalk, while the TCLS120D16 uses a 38mm long, 16mm stalk. As a result, the range covers several common cable and equipment connection requirements without requiring a conventional lug palm and stud hole.
Selecting a Copper Stalk Lug
Select the required cable size and stalk size from the options above. Always confirm that the conductor size, stalk dimensions and crimping tooling suit the cable and equipment manufacturer’s requirements before installation.
For alternative copper cable terminations, browse our Termco Copper Lugs range, including standard copper lugs, bell mouth lugs and narrow palm lugs.
Engineering Supplies can also assist with selecting suitable copper lugs, crimping tools and dies for your cable termination application.
