Utilux Red Pin Terminals

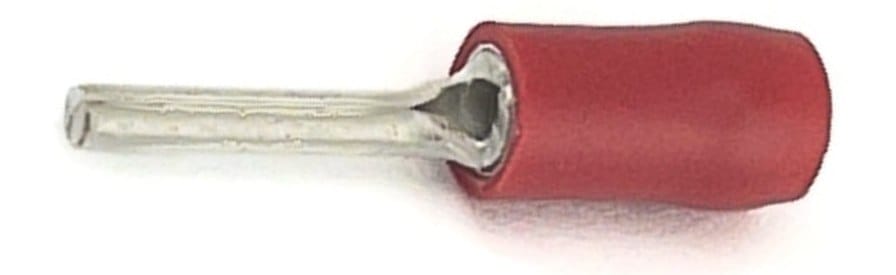

Pin terminals crimp onto a stripped conductor and terminate in a solid round pin, which inserts into a matching socket, terminal block or connector housing. Utilux red pin terminals suit stranded conductors from 0.5mm² to 1.5mm², colour-coded red to match this conductor range.
Because the pin end is solid and precisely sized, it seats firmly in its socket without the vibration-related loosening that can affect a plain stripped wire end. Consequently, pin terminals suit terminal blocks and connector housings that call for a defined pin size rather than a bare conductor.
Pin Sizes and Insulation Styles
Specifically, this range covers three insulation styles, each with its own pin width and overall length.
- Insulated – 1.6mm pin width, 21mm overall length
- Supergrip – 1.6mm pin width, 21mm overall length
- Uninsulated – 1.6mm pin width, 15.9mm overall length
Applications
Installers use pin terminals wherever a conductor terminates at a terminal block, connector housing or plug that accepts a round pin end, such as control panel wiring, PLC terminal blocks and equipment connectors. Accordingly, this range covers the pin size commonly found in this equipment.
In all cases, correct crimping requires a crimping tool suited to this conductor size range. The Supergrip style adds a heavier-duty crimp barrel for extra pull-out strength on the same conductor range. Installers can therefore choose Insulated, Supergrip or Uninsulated to suit the application. Uninsulated terminals also suit jobs where installers apply their own heat-shrink or tape after crimping, rather than relying on a factory-fitted sleeve.
Utilux Red Pin Terminals Australian Supply
Overall, Engineering Supplies stocks the full Utilux Terminals range. This includes ring, fork, pin, push-on, bullet, blade and cord end terminals, throughout Australia.
Contact Engineering Supplies for pricing, availability or technical assistance on (08) 9258 8444 or email sales@engsup.com.au.
