Description

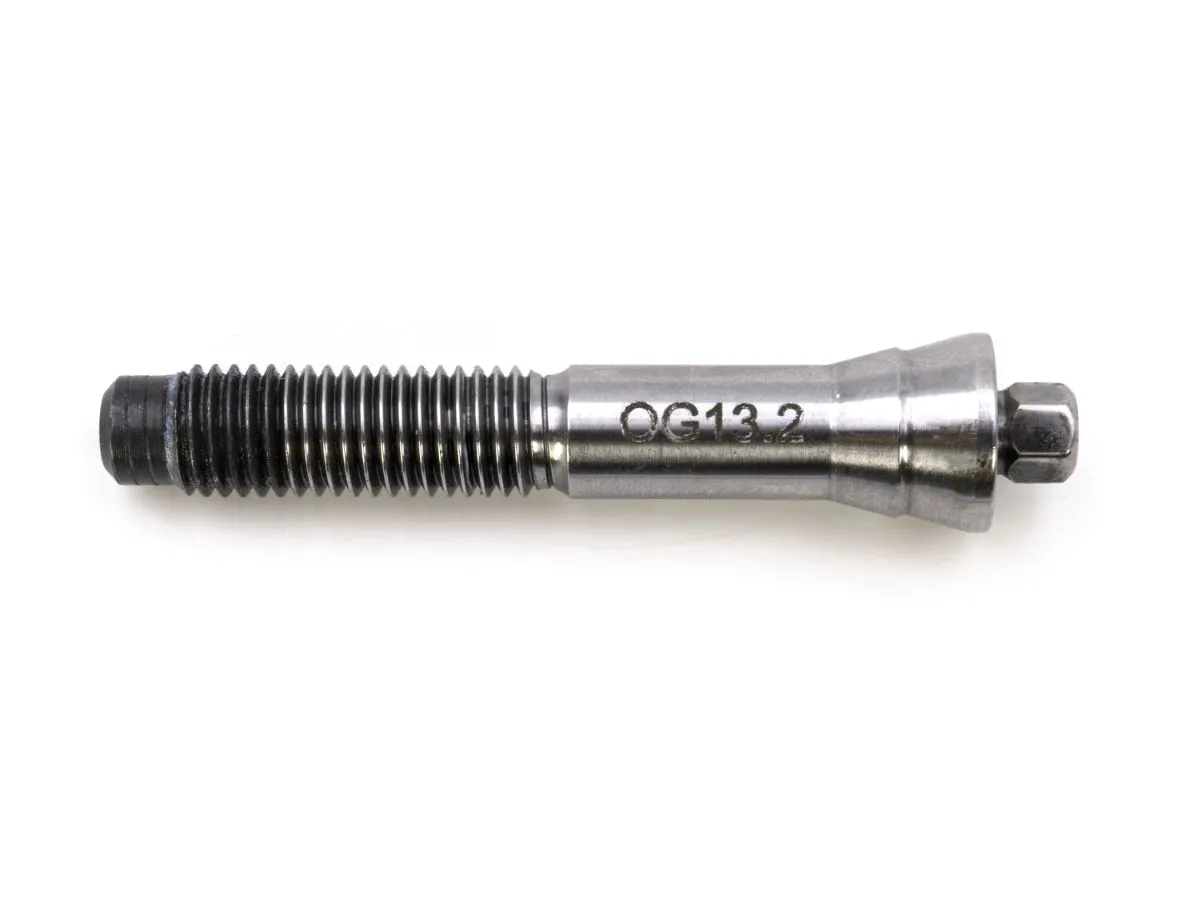

Cembre OG13.2 Installation Mandrel
The Cembre OG13.2 mandrel is a dedicated installation accessory for fitting AR60D, AR260D and AR65 rail web bush connection kits.
Designed for use with the B1300TEP-T Battery Hydraulic Installation Tool or HTEP Manual Hydraulic Installation Tool, the OG13.2 helps provide controlled and repeatable expansion of the Cembre AR rail contact bush during installation.
During installation, the hydraulic tool pulls the OG13.2 mandrel through the conductive bush. As a result, the bush expands firmly against the internal surface of the rail web hole and creates the permanent electrical interface between the rail and the Cembre AR contact.
Using the correct Cembre installation mandrel is important because the mandrel controls the expansion of the conductive bush. Therefore, installers should always use the mandrel specified for the particular Cembre AR rail contact being installed.
Cembre OG13.2 Mandrel Compatibility
The Cembre OG13.2 is suitable for use with:
- Cembre AR60D Rail Web Bush Connection Kit
- Cembre AR260D Double-Sided Rail Web Bush Connection Kit
- Cembre AR65 Rail Web Bush Connection Kit
- Cembre B1300TEP-T Battery Hydraulic Installation Tool
- Cembre HTEP Manual Hydraulic Installation Tool
The mandrel forms part of Cembre’s complete rail connection installation system. In addition to the correct mandrel, installers should use the specified rail drill, broach cutter, hydraulic installation equipment and checking tools for the applicable AR contact.
Controlled AR Rail Contact Installation
Cembre AR rail web contacts use a cold mechanical expansion process rather than welding. During installation, the mandrel passes through the copper bush and expands it against the rail web hole.
Consequently, it plays an important role in achieving the correct installation geometry and a consistent mechanical interface between the bush and rail.
Because it is a dedicated Cembre installation component, installers should keep it clean and inspect it for wear or damage before use. Furthermore, installers should not use damaged or incorrect installation tooling, as this may affect the quality of the completed AR connection.
For replacement mandrels, complete AR installation tooling or assistance identifying the correct components for an application, contact Engineering Supplies.
Manufacturer technical information: Cembre OG13.2 Official Product Page.
Cembre OG13.2 Mandrel Frequently Asked Questions
What is the OG13.2 mandrel used for?
Installers use it to fit the AR60D, AR260D and AR65 Cembre rail web bush connection kits.
Which installation tools does it work with?
Installers use it with the Cembre B1300TEP-T battery hydraulic tool and the Cembre HTEP manual hydraulic tool.
How does the mandrel work during installation?
The hydraulic tool pulls it through the conductive bush. Overall, this expands the bush firmly against the rail web hole and creates the permanent electrical interface with the rail.
Why does the correct mandrel matter for a rail connection?
The mandrel controls the expansion of the conductive bush, so it directly affects the installation geometry. Accordingly, installers should always use the mandrel specified for the particular AR rail contact being fitted.
Is a replacement mandrel available separately?
Yes.
Engineering Supplies supplies replacement mandrels and complete AR installation tooling; contact Engineering Supplies for assistance identifying the correct components for an application.
Cembre OG13.2 Mandrel Australian Supply
Engineering Supplies supplies Cembre AR rail contacts, installation mandrels, hydraulic tooling, rail drilling equipment, broach cutters, gauges, spare parts and accessories throughout Australia.
Contact Engineering Supplies for pricing, availability or technical assistance on (08) 9258 8444 or email sales@engsup.com.au.
