Earth Rods & Accessories
Earth rods and accessories for electrical, utility, industrial and infrastructure earthing systems, including copper clad and stainless steel earth rods, couplers, clamps, clips and tags.
Browse the available earthing range below or contact Engineering Supplies for product selection and technical support.
Showing all 12 resultsSorted by popularity
Earth Rods & AccessoriesCLAMP210 Earth Rod Clamp
CLAMP210 Earth Rod Clamp is a robust U-bolt style clamp for connecting a single earthing conductor parallel to an earth rod.
Suitable for 3–15mm earth rods and conductors from 16–120mm², the clamp uses a high-copper-content alloy body with a V-groove to securely accommodate the earthing cable.
Dulmison P/N: CLAMP210
Engineering Supplies P/N: DULCLAMP210
Earth Rods & AccessoriesCopper Clad Threaded Earth Rods
Copper Clad Threaded Earth Rods provide a practical earth electrode for electrical earthing and grounding systems.
The ER-CSE range features a tapered driving end and threaded sectional design, allowing multiple rod sections to be joined using compatible earth rod couplers where additional driven depth is required.
Available in 16mm / 5/8″ and 19mm / 3/4″ diameters, with lengths from 1800mm to 3000mm.
P/N: ER-CSE
Earth Rods & AccessoriesEarth Rod Clamp GB2
The GB2 earth rod clamp suits one 50–120 mm² conductor and a 13–19 mm diameter earth rod. It allows parallel or right-angle connections and combines a high-copper-content alloy body with stainless steel hardware. Engineering Supplies part ER-GB2.
Earth Rods & AccessoriesStainless Steel Earth Rod Couplers (316)
316 stainless steel earth rod couplers join matching threaded stainless steel rod sections. Choose ER-SSC16 for a 16 mm (5/8 inch) rod or ER-SSC19 for a 19 mm (3/4 inch) rod. Both cylindrical couplers are 70 mm long.
Product group SKU: ER-SSC.
Earth Rods & AccessoriesEarth Rod Clamp EP1
The EP1 earth rod clamp connects one 16–120 mm² earth conductor parallel to a 17–19 mm diameter rod. It combines a high-copper-content alloy body with stainless steel hardware. Engineering Supplies part ER-EP1.
Earth Rods & AccessoriesEarth Rod Couplers
Specifically, Earth Rod Couplers join threaded copper clad earth rods, allowing installers to connect multiple rod sections for deeper earthing installations.
Presently available to suit 16mm / 5/8″ and 19mm / 3/4″ threaded earth rods, with a hexagonal body for easier installation and tightening.
P/N: ER-CCS

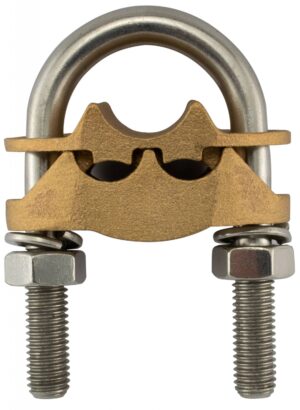

Earth Rods & AccessoriesEarth Rod Clamp EP4
The EP4 earth rod clamp connects two 50–120 mm² earth conductors parallel to the rod. It has a high-copper-content alloy body and stainless steel hardware. Part ER-EP4. Please confirm rod fit with Engineering Supplies before ordering.
Earth Rods & Accessories316 Stainless Steel Threaded Earth Rods
Specifically, 316 Stainless Steel Threaded Earth Rods provide a corrosion-resistant earthing electrode for demanding electrical and grounding applications.
Additionally, the ER-SS range features a tapered end and threaded sectional design, allowing multiple rods to be joined using compatible stainless steel couplers where greater driven depth is required.
Currently available in 16mm / 5/8″ and 19mm / 3/4″ diameters, with lengths up to 3000mm.
P/N: ER-SS

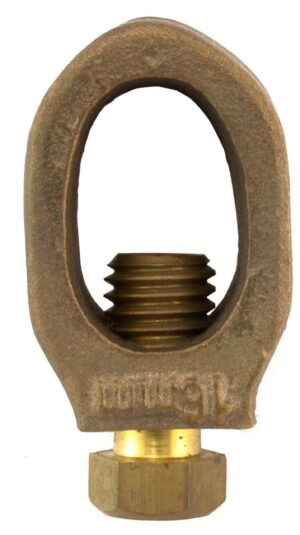

Earth Rods & AccessoriesEarth Rod Clamp GRC5
The GRC5 earth rod clamp suits one 10–35 mm² conductor parallel to a 13–15 mm diameter earth rod. It has a high-copper-content alloy body with a set-screw connection. Engineering Supplies part ER-GRC5.
Earth Rods & AccessoriesDomestic Rod Earth Tag
ERTAGP is a plastic warning tag for identifying the main electrical earthing conductor at the earthing point. It displays a “Do Not Disconnect” message and has a single mounting hole.
Earth Rods & AccessoriesDomestic Rod Brass Earth Clip
ERCLIPS12.7 is a brass connection clip for domestic earth rods, suitable for cables from 4 to 25 mm². The screw fastening secures the clip at the connection. Check rod fit against your installation.
Earth Rods & AccessoriesCopper Clad non-extendable Domestic Earth Rods
CUP1314WCWT copper clad domestic earth rod is a non-extendable 13 mm (1/2 inch) × 1440 mm rod with an integral driving point. A clip and warning tag are included.
Part number: CUP1314WCWT · Product group SKU: ER-CUP.
