Cembre AR260 Washer Kit – AR260D Installation Washer

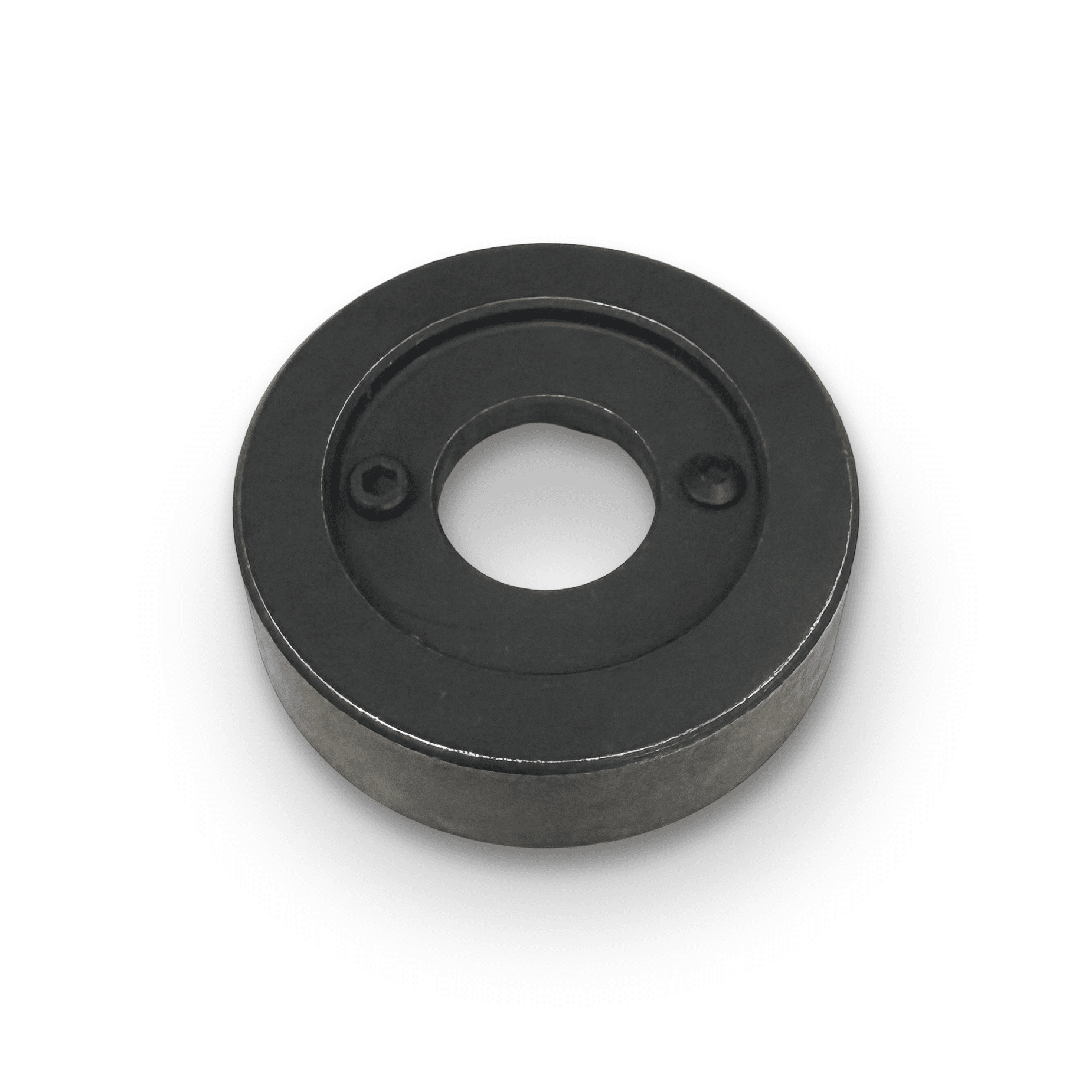

The Cembre AR260 Washer Kit is the dedicated installation accessory required for correct extrusion of the Cembre AR260D double-sided rail web bush connection.
Cembre also identifies the kit as the HTEP/AR260WASHER. Specifically, it incorporates the Ø38 mm installation washer used during installation of the AR260D double contact.
The washer provides the correct support during hydraulic extrusion of the AR260D. As a result, installers can install the double-sided rail bush correctly through the 19 mm rail web hole.
Cembre AR260 Washer Kit Compatible Installation Equipment
Installers use the washer with compatible Cembre rail bush installation equipment, including:
- Cembre HTEP manual hydraulic installation tool
- Cembre B1300TEP-T battery hydraulic installation tool
- RHTEP-S rail bush installation head
- OG13.2 installation mandrel
Specifically, the washer is required for installation of the AR260D double-sided rail web connection and differentiates its installation setup from the single-sided AR60D.
AR260D Double Contact Installation
The AR260D provides two M12 cable connections from opposite sides of a single permanent rail web bush.
During installation, the AR260 washer provides the support required for controlled extrusion of the double contact using the RHTEP-S hydraulic installation head and OG13.2 mandrel.
Included with HTEP and B1300TEP-T
Cembre supplies this washer as standard with new:
- Cembre HTEP installation tools
- Cembre B1300TEP-T battery installation tools
In addition, Engineering Supplies supplies it separately. This suits customers requiring a replacement washer, spare installation kit or additional setup for existing Cembre rail connection tooling.
Manufacturer information: Cembre HTEP Rail Contact Installation Tool
Cembre AR260 Washer Kit Compatible Rail Web Connection
Cembre AR260D — double-sided M12 rail web bush connection for 14–16.5 mm rail web thickness using a 19 mm rail hole.
Indeed, the AR260D allows installers to connect conductors from both sides of a single permanent rail web bush, and it requires the AR260 washer during installation.
Cembre AR260 Washer Kit Frequently Asked Questions
What is this washer kit used for?
Installers use it to support correct extrusion of the Cembre AR260D double-sided rail web bush connection during installation.
What size is the AR260 washer?
Overall, it incorporates a Ø38 mm installation washer.
Which installation tools does this washer work with?
Installers use it with the Cembre HTEP manual hydraulic tool and the Cembre B1300TEP-T battery hydraulic tool. It also works with the RHTEP-S installation head and the OG13.2 mandrel.
Does this washer come supplied with a new HTEP or B1300TEP-T?
Yes.
Cembre supplies it as standard with new HTEP and B1300TEP-T installation tools. However, Engineering Supplies also supplies it separately as a replacement or spare.
Can I use this washer with the single-sided AR60D?
No.
Installers require it specifically for the double-sided AR260D connection; therefore, it differs from the single-sided AR60D installation setup.
Cembre AR260 Washer Kit Australian Supply
Engineering Supplies supplies the AR260 Washer Kit / HTEP-AR260WASHER together with AR260D bush kits, OG13.2 mandrels, CAL19.20 gauges and complete Cembre hydraulic rail contact installation tooling.
Contact Engineering Supplies for pricing, availability, replacement parts and technical support on this washer kit and the complete Cembre rail electrical connection range.
