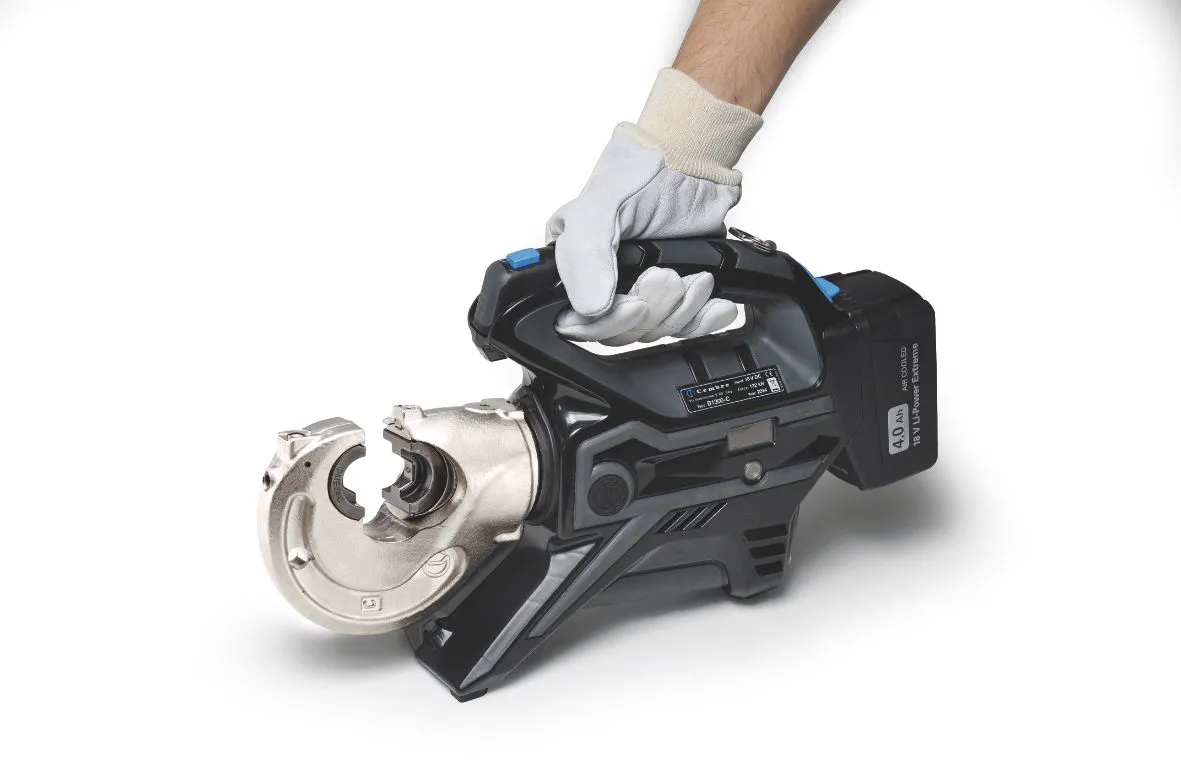

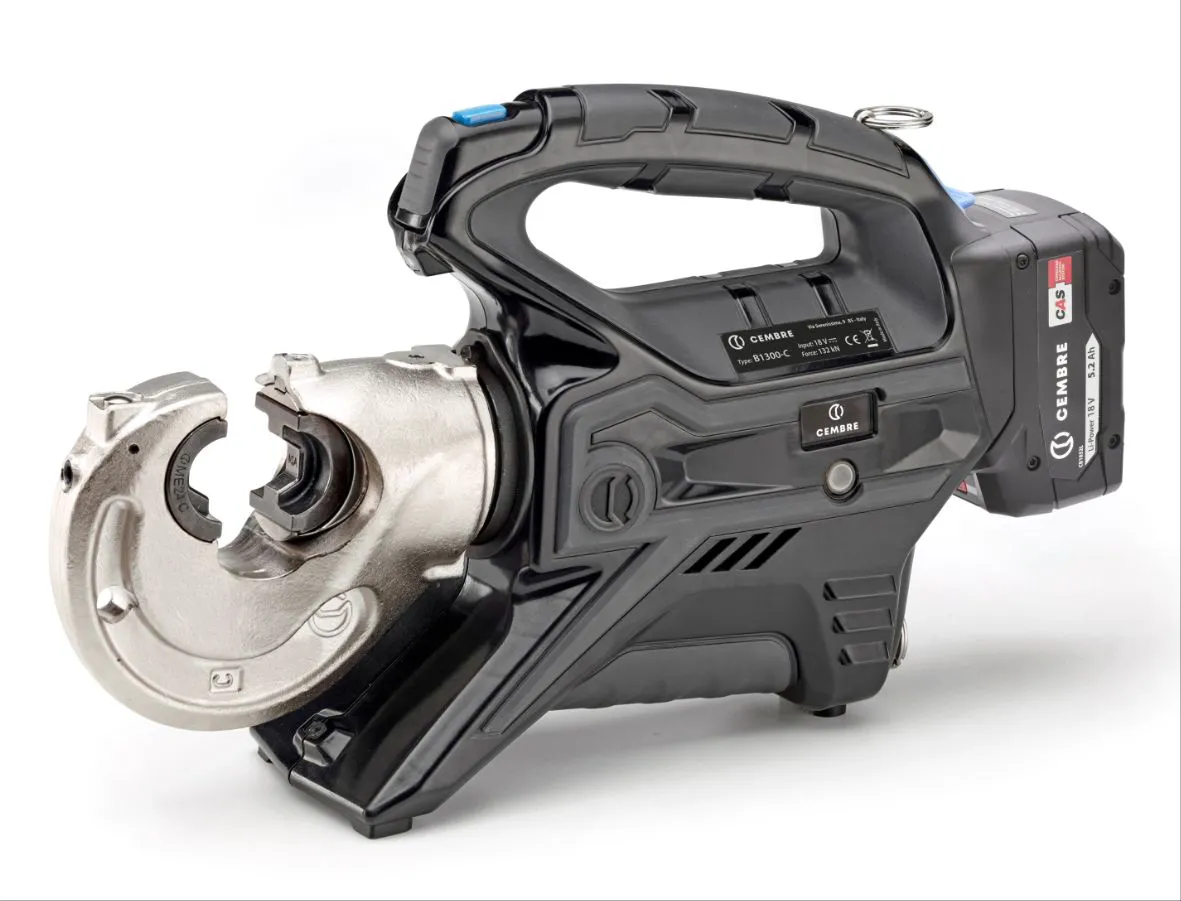

B1300-CT Crimping Tool

Description

The Cembre B1300-CT crimping tool is a heavy-duty 18V battery hydraulic crimper for installing electrical compression connectors on conductors up to 400 mm².

It develops 132 kN of nominal crimping force and uses the standard die system shared with compatible Cembre 130 kN tools and heads. Therefore, customers who already operate Cembre 130 kN equipment can use compatible dies across multiple tools.

In addition, the Australian B1300-CT version includes the appropriate AUS/NZ battery charger.

The B1300-CT combines a powerful hydraulic system with cordless 18V operation.

Its twin-speed hydraulic action first advances the ram quickly towards the connector. Then, the tool automatically changes to a slower, higher-force stage to complete the crimp.

As a result, operators get fast die positioning together with the force required for heavy-duty electrical terminations.

B1300-CT Battery Hydraulic Crimping

The tool develops 132 kN of nominal crimping force and suits electrical compression connectors on conductors from approximately 10 to 400 mm².

Depending on the connector and selected die, compatible crimping profiles include:

Hexagonal crimping
Indent crimping
Oval crimping
Radial crimping
Circular crimping

Therefore, the same tool can support a broad range of electrical cable lug and connector applications.

However, always select the correct Cembre die for the connector type, conductor size and required crimp profile.

B1300-CT Crimping Tool Head

The open C-shaped crimping head rotates through 180°.

Therefore, operators can position the head more easily around cables and connectors in switchboards, substations, industrial installations and other restricted areas.

In addition, the open-head design provides straightforward access when fitting or removing crimping dies.

The standard head provides approximately 26 mm jaw opening. As a result, operators have good access around larger connectors while retaining a compact head design.

B1300-CT EPS Pressure Monitoring

The crimping tool uses an EPS electronic pressure sensor to monitor hydraulic pressure during the crimping cycle.

As a result, the system can monitor the force developed during operation and provide feedback through the integrated display.

In addition, a quick pressure-release button allows operators to release hydraulic pressure whenever required.

Meanwhile, a protected operating button helps reduce accidental activation.

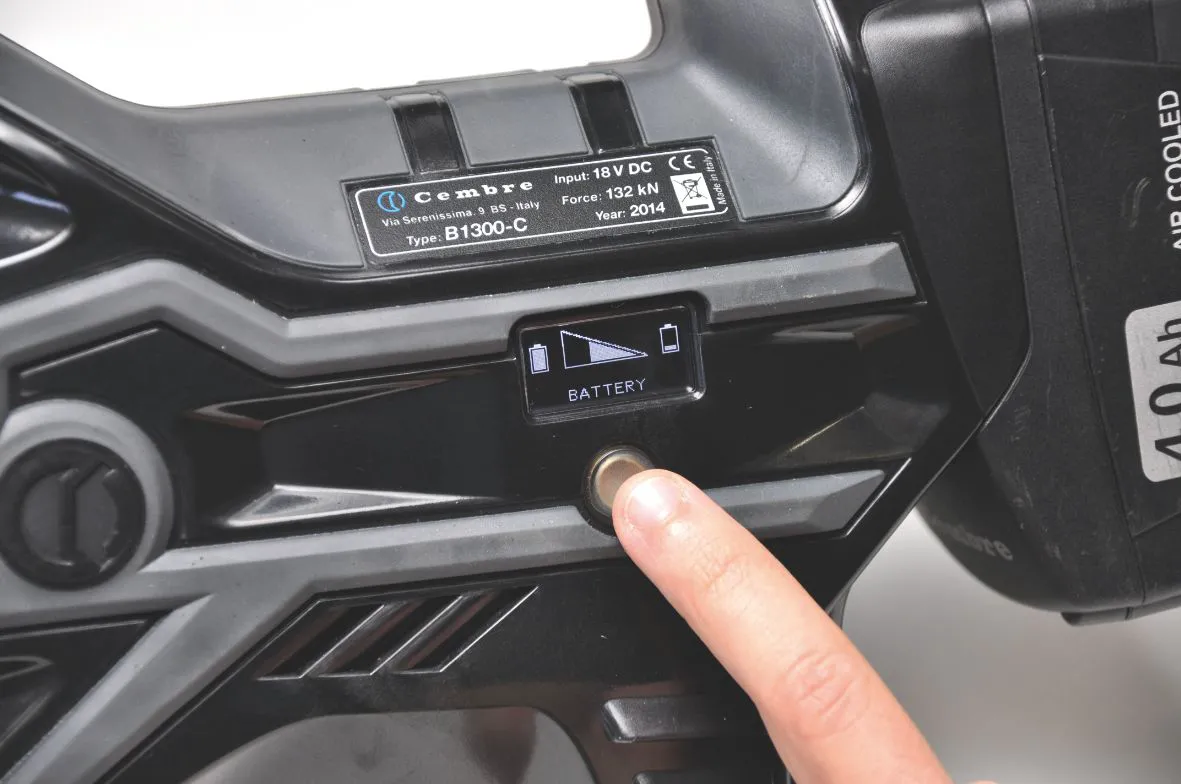

B1300-CT OLED Display and SMARTOOL

An integrated OLED display provides real-time operating information.

For example, operators can monitor:

Crimping force
Battery charge status
Completed work cycles
Remaining cycles before maintenance
General tool operating information

Furthermore, Cembre SMARTOOL technology records operating data for digital review and download.

Therefore, users can access useful information for tool management, maintenance planning and job records.

B1300-CT Crimping Die Compatibility

The B1300-CT crimping tool accepts the standard die system used across compatible Cembre 130 kN crimping tools and hydraulic heads.

For example, compatible dies can also be used with equipment such as the Cembre RHC131 Hydraulic Crimping Head and HT131-C Manual Hydraulic Crimping Tool, subject to connector and die compatibility.

Therefore, businesses operating several Cembre tools can reduce the number of separate die systems they need to manage.

Crimping dies are sold separately unless otherwise specified.

B1300-CT vs B1350-CT Crimping Tool

Both the B1300-CT and Cembre B1350-CT Battery Hydraulic Crimping Tool provide high-force cordless crimping for connectors on conductors up to 400 mm².

However, the two tools use different body layouts.

The B1300-CT uses Cembre’s in-line format, with handles designed for balanced two-handed operation.

In comparison, the B1350-CT uses a pistol-style configuration, which may better suit users who prefer a more compact hand-held layout.

Therefore, both tools offer similar heavy-duty crimping capability while giving users a choice of tool format.

B1300-CT Crimping Tool Specifications

Manufacturer: Cembre
Part Number: B1300-CT
Product Family: B1300-C
Product Type: Battery hydraulic crimping tool
Nominal Crimping Force: 132 kN
Minimum Rated Crimping Force: 125.2 kN
Crimping Range: 10–400 mm²
Supply Voltage: 18V
Battery: CB1852L Li-Ion
Battery Capacity: 5.2Ah / 93.6Wh
Head Type: Open C-head
Head Rotation: 180°
Jaw Opening: Approx. 26 mm
Crimping Profiles: Hexagonal, indent, oval, radial and circular
Pressure Monitoring: EPS electronic pressure sensor
Pressure Release: Manual
Display: OLED
Digital Support: SMARTOOL
Operating Temperature: -15°C to +50°C
Dimensions: Approx. 406 x 239 x 102.5 mm
Operating Weight: Approx. 6.5 kg
Crimping Dies: Sold separately

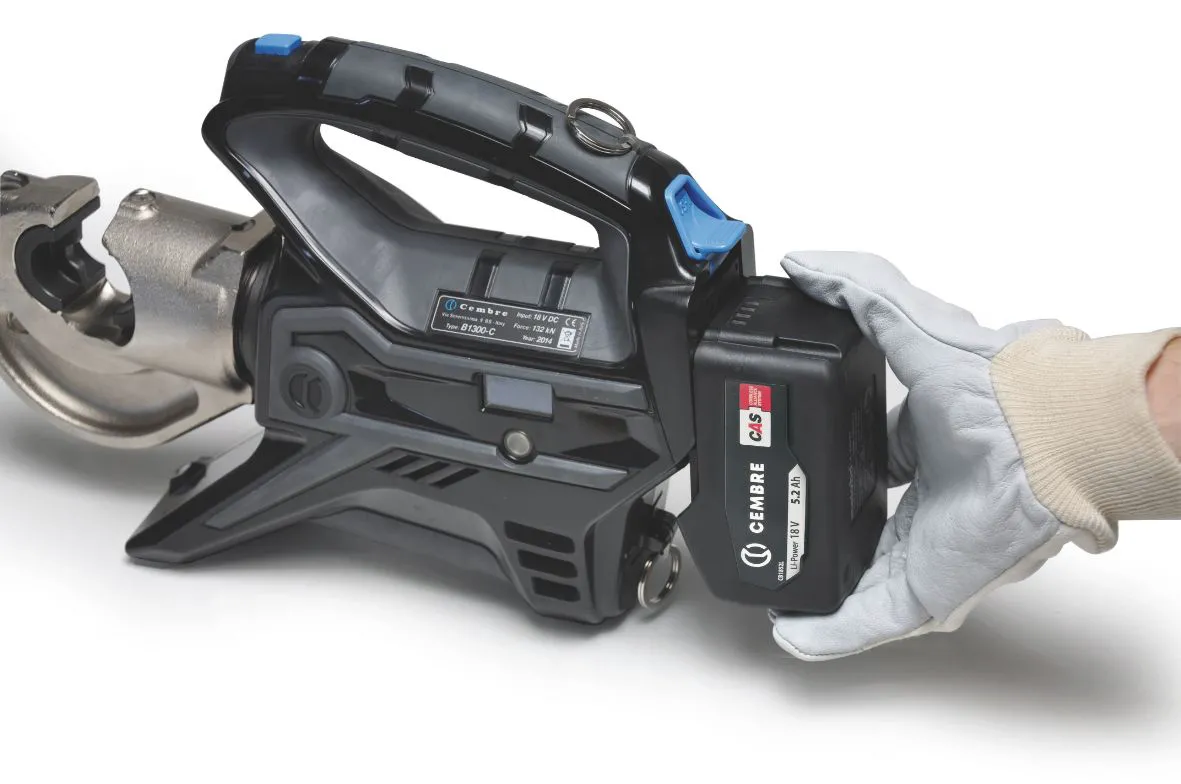

B1300-CT Crimping Tool Kit Contents

The Australian B1300-CT configuration includes:

B1300-CT battery hydraulic crimping tool
2 x CB1852L 18V Li-Ion batteries
ASC55-AUS/NZ battery charger
USB cable
Shoulder strap
VAL-P44 plastic carrying case

Therefore, the tool arrives with the appropriate Australian/New Zealand charger and two batteries for field use.

B1300-CT Crimping Tool Features

Key features include:

132 kN nominal crimping force
Electrical connectors up to 400 mm²
18V cordless hydraulic operation
Twin-speed hydraulic action
Open C-shaped crimping head
180° head rotation
EPS electronic pressure monitoring
OLED operating display
SMARTOOL digital data support
Manual pressure release
LED work lights
Protected operating button
Two 18V batteries supplied
Australian charger configuration
Compatible with standard Cembre 130 kN dies

B1300-CT Australian Supply and Service

Engineering Supplies supplies the Cembre B1300-CT crimping tool together with compatible Cembre crimping dies, electrical connectors, batteries, chargers, accessories and spare parts.

In addition, we provide Australian maintenance and repair support for Cembre battery hydraulic tools through our Tool Maintenance & Repair service.

You can also view our complete range of Cembre Crimping and Cutting Tools.

Finally, for current manufacturer specifications and technical information, visit the Cembre B1300-C Official Product Page.
