Description

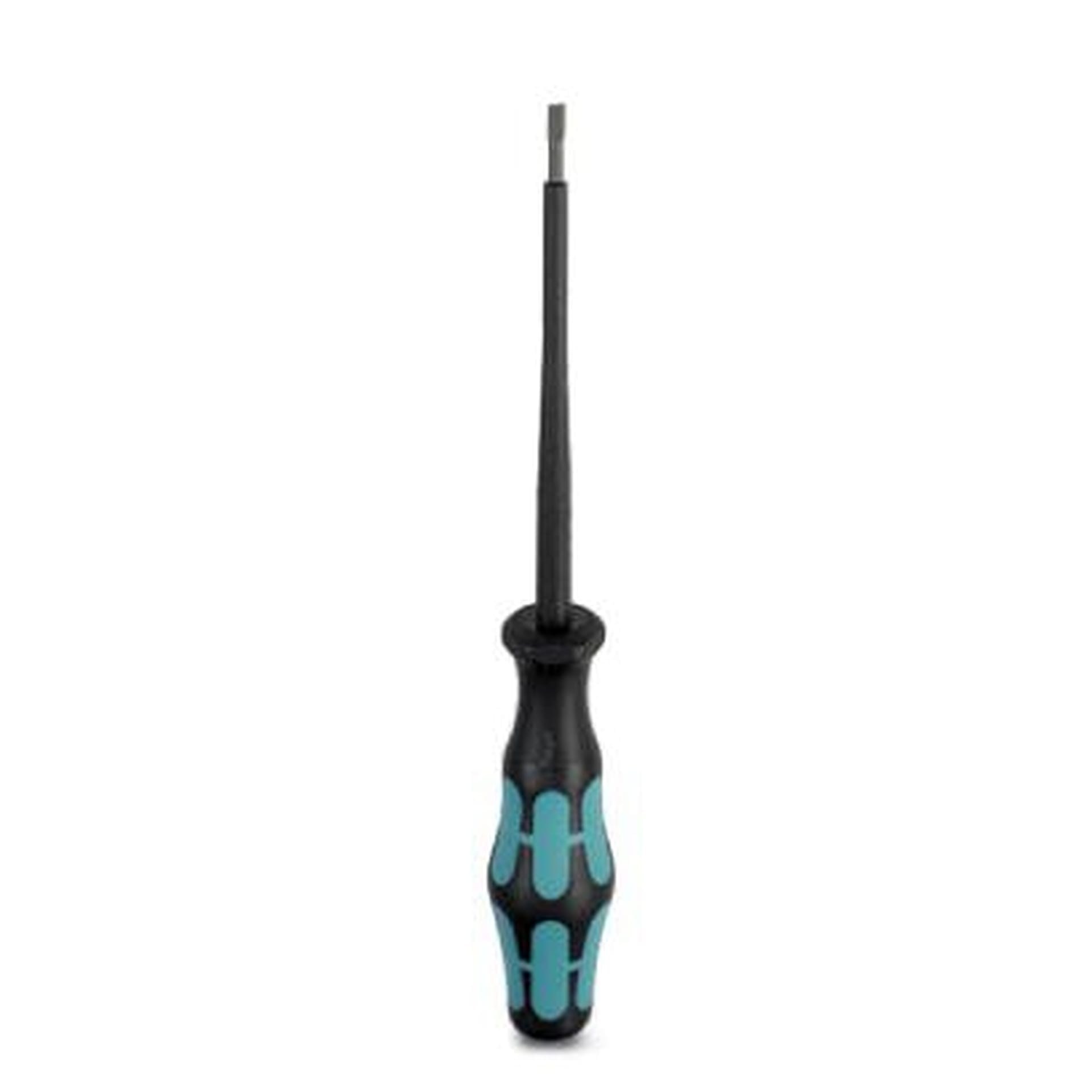

Phoenix Contact SZS 0,6X3,5 insulated screwdriver
The Phoenix Contact SZS 0,6X3,5 is an insulated actuation tool for ST terminal blocks. It also works as a slotted screwdriver, with a blade that measures 0.6 mm thick and 3.5 mm wide. Phoenix Contact lists ST and QTC modular terminal blocks among the tool’s applications.
The blade length is 100 mm and the tool measures 181 mm overall. A two-component handle gives you a firm grip, while the handle shape helps stop the tool rolling away on a bench. These features suit repeated terminal work where control and access both matter.
SZS blade dimensions and specifications
- Manufacturer: Phoenix Contact
- Manufacturer part number: 1205053
- Engineering Supplies SKU: PC1205053
- Tool type: insulated terminal actuation tool and slotted screwdriver
- Blade thickness: 0.6 mm
- Blade width: 3.5 mm
- Blade length: 100 mm
- Overall length: 181 mm
- Tool width: 26 mm
- Blade material: alloyed tool steel
- Listed test standard: DIN/ISO 2380-1
Selecting a tool for the connection
Check the terminal part number and its tool instructions before use. For spring terminals, use the intended actuation opening and follow the maker’s fitting sequence. For slotted screws, match both the blade width and thickness to the head so the tip fits properly.
Also allow space for the handle to turn and for the blade to reach the connection. A tool with the same tip size can have a different shape or purpose. For example, the SZG 0,6X3,5 VDE screwdriver has a stepped blade for test socket screws. Check the product details for each model when choosing between them.
Further information and ordering help
Read the Phoenix Contact SZS 0,6X3,5 product specifications for further details. To discuss a terminal tool, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Quote PC1205053 and provide the terminal model, screw details and any limits on access.
