Description

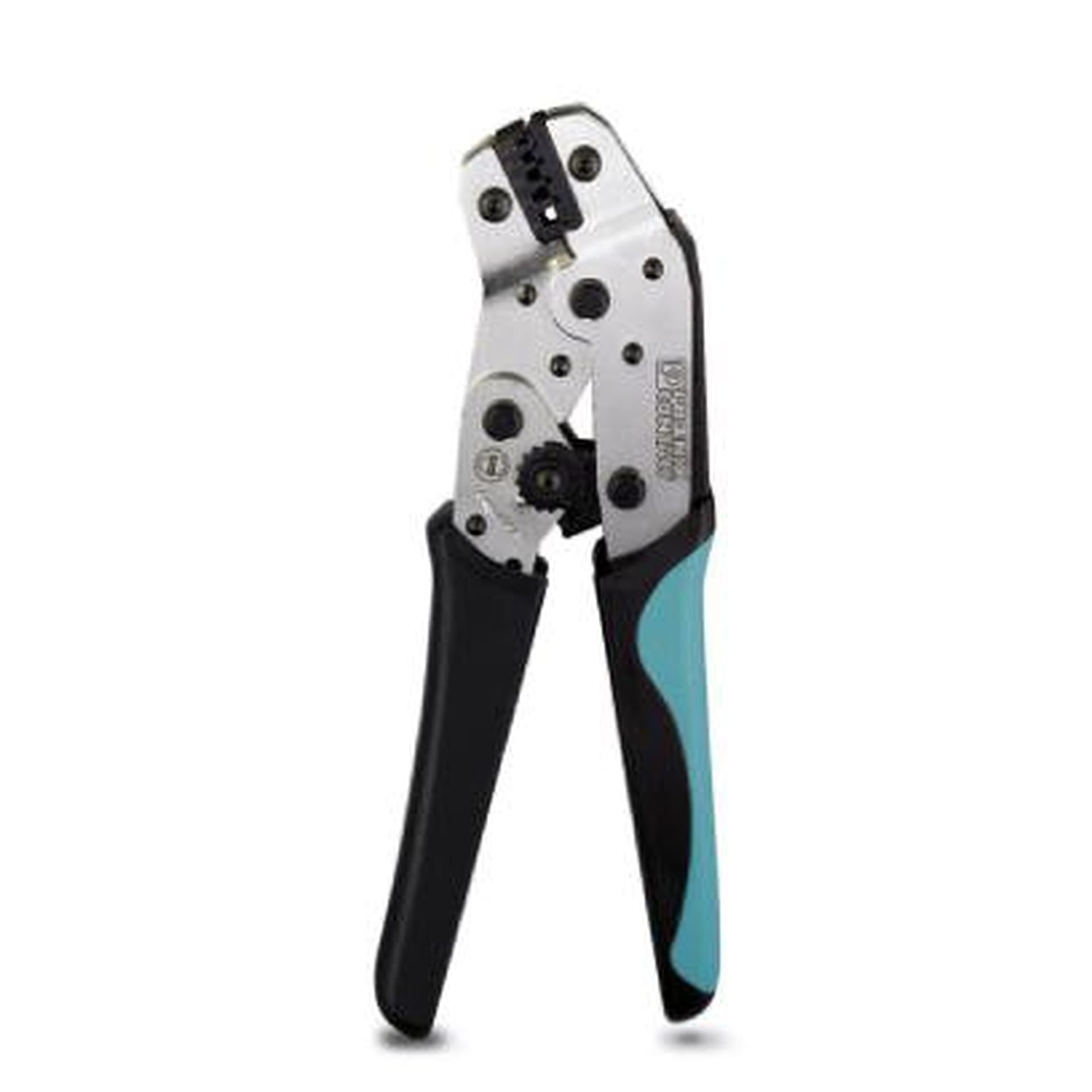

The Phoenix Contact CRIMPFOX 6 is a side-entry ferrule crimper with five marked die stations covering 0.25–6 mm² wire. It forms a trapezoidal crimp and suits the listed ferrules with or without an insulating collar. The compact tool has two-component handles and a low grip span.
Phoenix Contact CRIMPFOX 6 features
- Five marked positions for the stated wire sizes.
- Side entry for loading ferrules.
- Pressure lock that releases without tools.
- Adjustable crimping force.
- Shaped two-component handles.
- 198 mm overall length.
Die stations and specifications
| Detail | Specification |
|---|---|
| Die station 1 | 0.25–0.75 mm² |
| Die station 2 | 1–1.5 mm² |
| Die station 3 | 2.5 mm² |
| Die station 4 | 4 mm² |
| Die station 5 | 6 mm² |
| Crimp profile | Trapezoidal |
| Ferrules without a collar | DIN 46228 Part 1 |
| Ferrules with an insulating collar | DIN 46228 Part 4 |
| Length × width × height | 198 × 18 × 59 mm |
| Phoenix Contact order number | 1212034 |
| Engineering Supplies SKU | PC1212034 |
Match the ferrule to the marked station
Choose the ferrule for the wire cross-section, then use the marked die position that matches that size. The table separates the five positions so you can check a parts list against the tool before ordering.
Also check the ferrule length and collar style required for the connection. Follow the ferrule and terminal makers’ strip-length and fitting guidance. The wire size, ferrule and finished crimp profile all need to suit the terminal that will hold the wire.
The tool offers adjustable crimping force. Refer to Phoenix Contact’s instructions for any adjustment, and retain the settings appropriate to the ferrule in use.
Compare related ferrule crimpers
For a square crimp across 0.14–10 mm², see CRIMPFOX 10S. For 10, 16 and 25 mm² ferrules with a WM profile, see CRIMPFOX 25R. These tools differ in their crimp shape as well as their wire range.
If you work with both lugs and ferrules, the CRIMPFOX-M SET page lists the terminal types and sizes covered by each supplied insert. Compare those details with your actual parts before choosing a tool.
Product data and ordering support
Read the official CRIMPFOX 6 product information for full technical details. Quote 1212034 or SKU PC1212034 when ordering.
For selection and supply enquiries, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Send the wire size and ferrule part number so we can help you check the right crimper for the job.
