Description

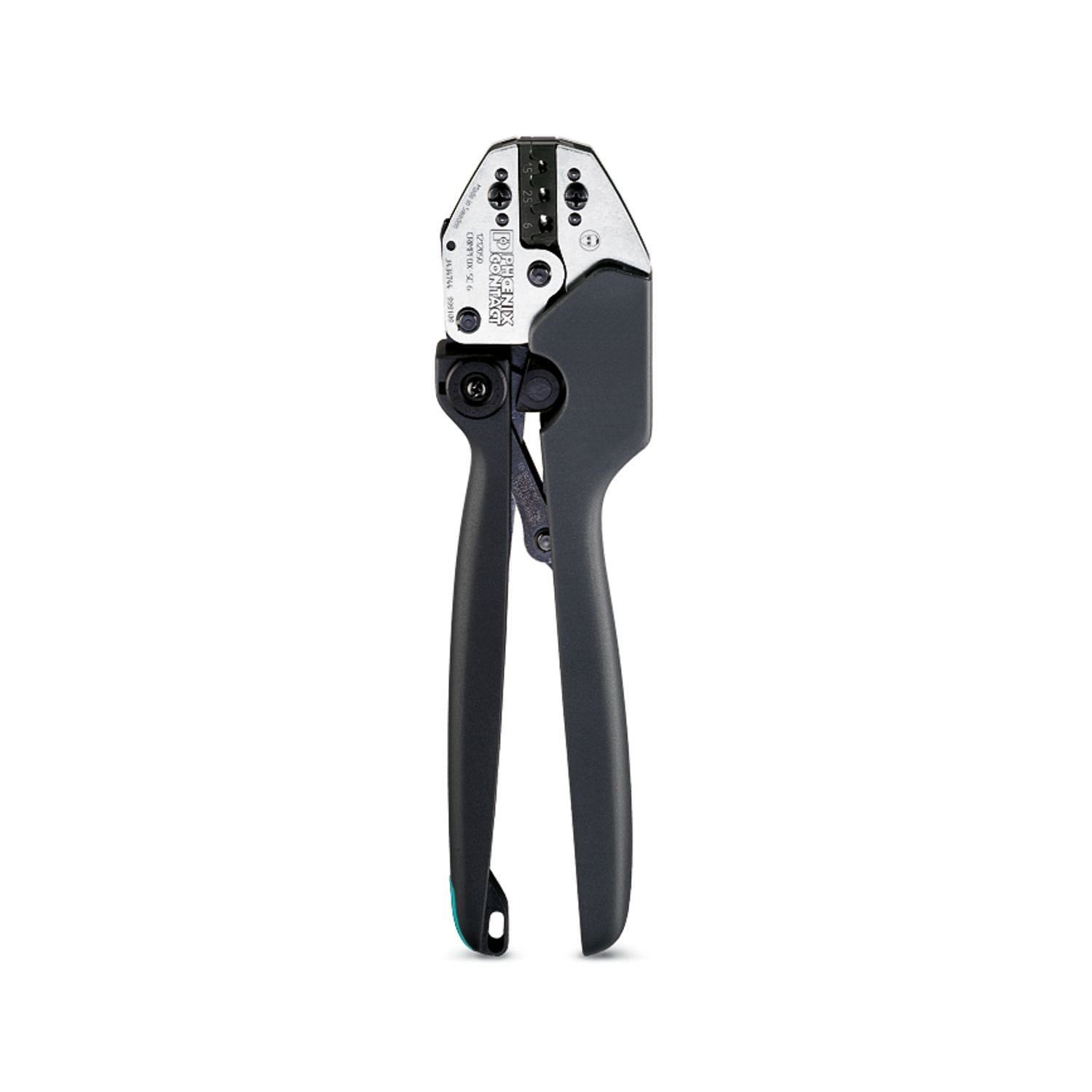

The Phoenix Contact CRIMPFOX-SC 6 is a B-crimp tool for uninsulated slip-on sleeves in 2.8, 4.8 and 6.3 mm sizes. It covers conductor cross-sections from 0.5 to 6 mm². Three marked die stations help you select the right position for the wire size.
Phoenix Contact CRIMPFOX-SC 6 features
- B-crimp profile for the specified uninsulated slip-on sleeves.
- Three die stations with marked wire-size ranges.
- A pressure lock that can be released.
- Shaped handles and a low grip span.
- 256 mm overall tool length.
Crimping ranges and specifications
| Detail | Specification |
|---|---|
| Terminal type | Uninsulated slip-on sleeves |
| Sleeve sizes | 2.8, 4.8 and 6.3 mm |
| Crimp profile | B crimp |
| Die station 1 | 0.5–1.5 mm² |
| Die station 2 | 1.5–2.5 mm² |
| Die station 3 | 2.5–6 mm² |
| Length × width × height | 256 × 25 × 68 mm |
| Phoenix Contact order number | 1212050 |
| Engineering Supplies SKU | PC1212050 |
Choosing the correct terminal and die station
Check both the terminal design and the conductor size before choosing a crimper. The 2.8, 4.8 and 6.3 mm figures identify the slip-on sleeve sizes. In contrast, the mm² ranges identify the wire cross-sections handled by each die station. They are different measurements, so match both to your job.
Next, check the terminal maker’s crimp requirements. Similar-looking open-barrel contacts can have different barrel shapes, wire ranges and tool requirements. A terminal described as a relay contact or spade terminal still needs its own tool match; the name alone does not confirm suitability.
Use the marked station for the chosen conductor range and prepare the wire to the terminal maker’s strip-length guidance. This helps you select the tool and consumables as a set, rather than relying on a broad terminal label.
Cable preparation and product support
For cable preparation, see the CUTFOX 12_DB copper and aluminium cable cutter. Check its stated cable limits against the cable you plan to cut.
The official CRIMPFOX-SC 6 product page gives the manufacturer’s technical data. For selection or supply support, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Include the terminal part number and wire size so we can help you confirm the tool choice.
