Description
The Phoenix Contact CRIMPFOX-M SET combines one pair of CRIMPFOX-M pliers with four crimping die sets. It covers specified insulated cable lugs, uninsulated conduit lugs and ferrules. The inserts can be changed without tools, so you can move between the listed terminal types using the same pliers.

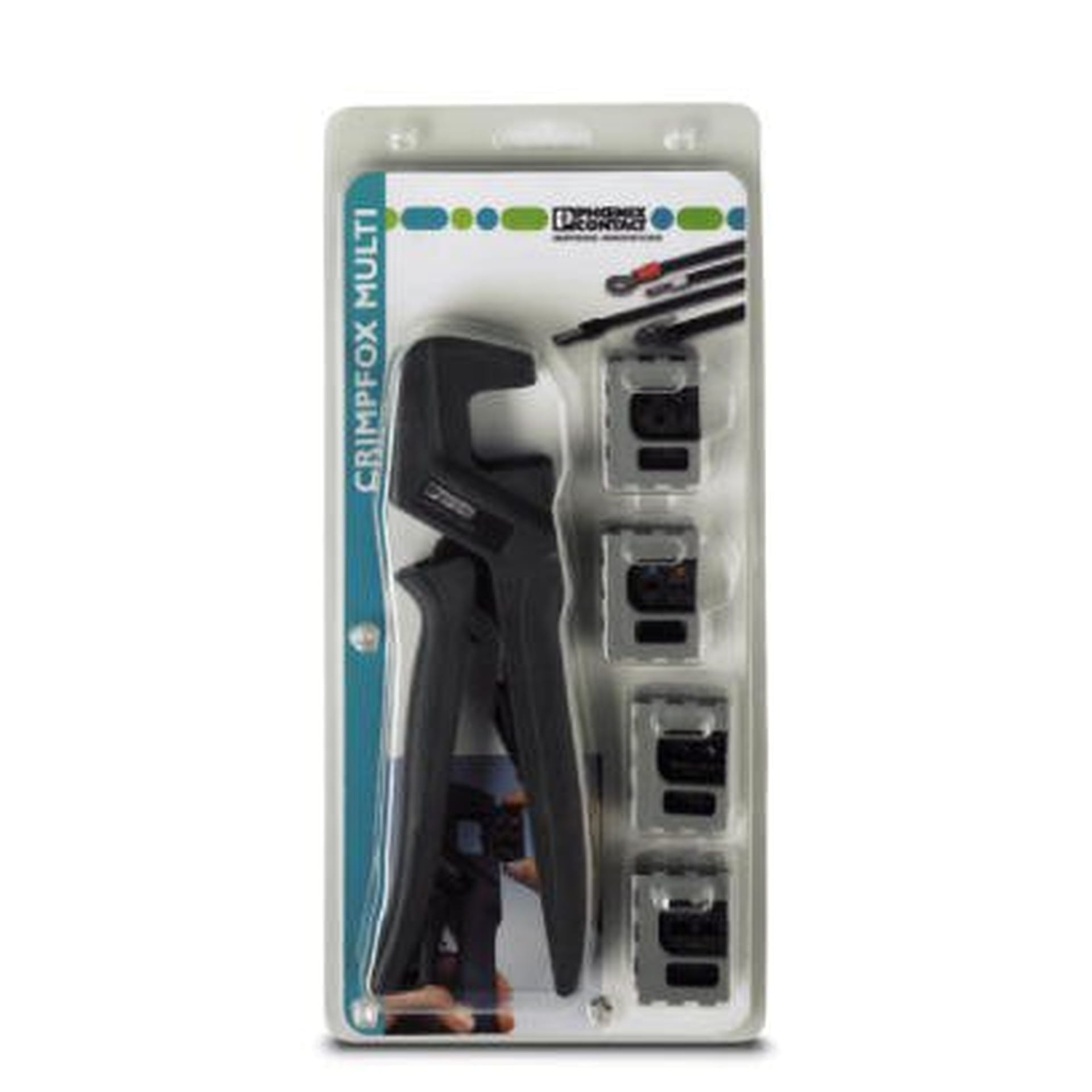

Phoenix Contact CRIMPFOX-M SET contents
- CRIMPFOX-M crimping pliers.
- Die 1212074 for insulated cable lugs, 0.5–2.5 mm².
- Die 1212079 for uninsulated conduit lugs, 0.5–6 mm².
- Die 1212080 for ferrules, 0.25–10 mm².
- Die 1212081 for 16 mm² and 25 mm² ferrules.
Die selection at a glance
| Insert part number | Terminal type | Wire cross-section |
|---|---|---|
| 1212074 | Insulated cable lugs | 0.5–2.5 mm² |
| 1212079 | Uninsulated conduit lugs | 0.5–6 mm² |
| 1212080 | Ferrules | 0.25–10 mm² |
| 1212081 | Ferrules | 16 mm² or 25 mm² |
Start with the terminal type, then check the wire cross-section against the matching row. Each insert has its own range. For example, the larger ferrule insert covers the two stated sizes; it does not extend the insulated-lug range to 25 mm².
A compact set for several crimping tasks
The range of inserts lets you keep several crimping options with one hand tool. In addition, tool-free insert changes simplify the move from one supported terminal type to another. This is useful when a job involves both cable lugs and ferrules within the ranges shown above.
Before use, match the actual terminal part number to the required die and wire size. Follow the terminal maker’s strip-length and crimp guidance as well. A shared wire size does not mean that two different terminal designs use the same insert.
For uninsulated slip-on sleeves requiring a B crimp, compare the separate CRIMPFOX-SC 6 crimping pliers. That tool has a different stated terminal use. Checking the terminal design first helps you choose between a crimper for one task and this multi-insert set.
Ordering and further information
The set’s Phoenix Contact order number is 1212093; the Engineering Supplies SKU is PC1212093. Use the set number when ordering the complete package and the die numbers when asking about an insert.
See the official CRIMPFOX-M SET page for full product details. For help with the correct tool, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Send the terminal part numbers and wire sizes with your enquiry so we can help check the match.
