Description

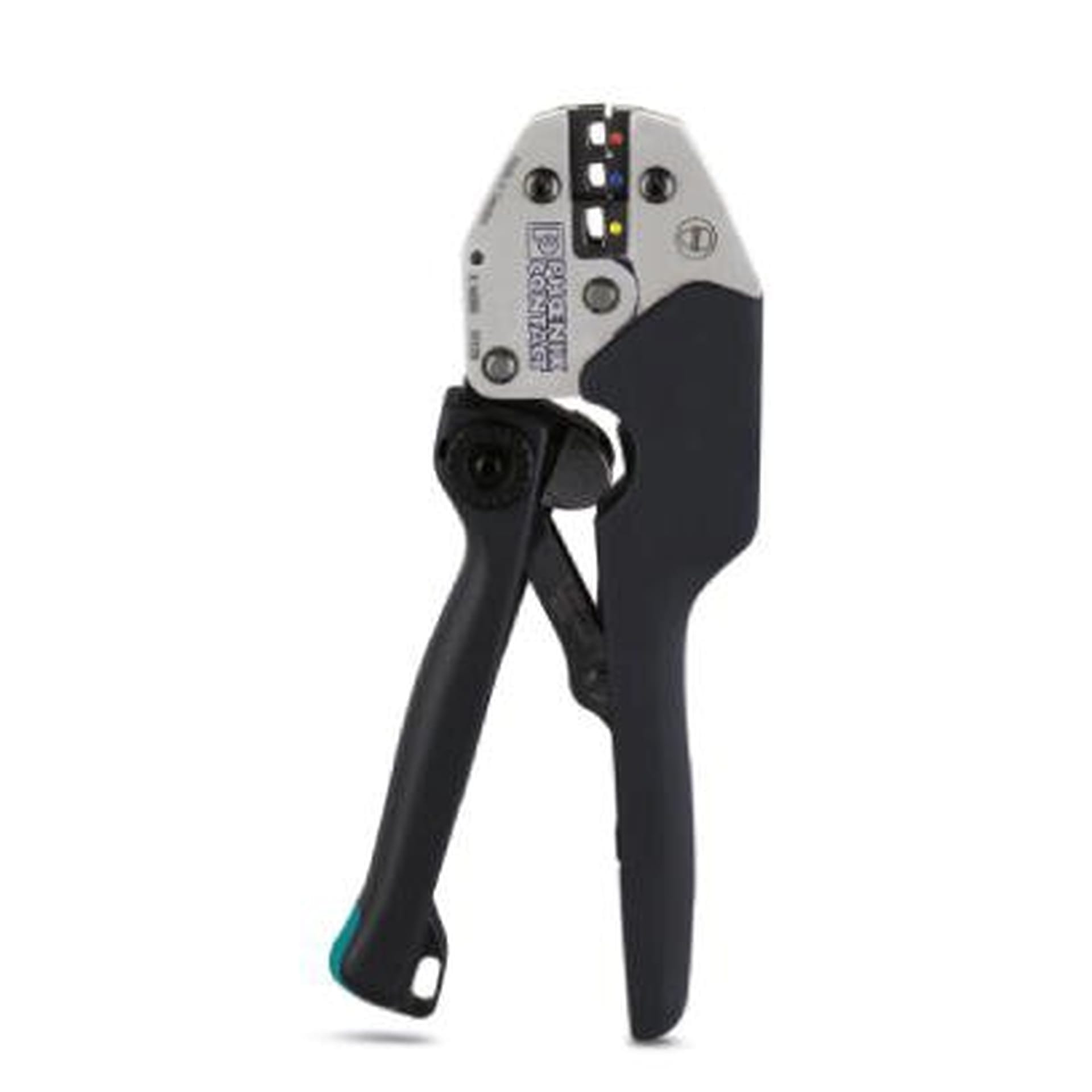

The Phoenix Contact CRIMPFOX-RCI 6-M is a compact crimping tool for symmetrical insulated cable lugs in the red, blue and yellow size groups. It covers 0.5–6 mm² conductors through three marked die stations and forms an oval crimp. Side entry lets you place the terminal into the tool from the side.
Phoenix Contact CRIMPFOX-RCI 6-M features
- Three marked, colour-coded die stations.
- Oval crimp for the stated insulated cable lugs.
- Side-entry design.
- Pressure lock that can be released.
- Compact 204 mm overall length.
The pressure lock releases when the required crimping pressure is reached. As a result, it helps control the crimp cycle. Correct terminal selection and wire preparation still matter: use the die and strip length specified for the terminal you are fitting.
Technical specifications
| Detail | Specification |
|---|---|
| Terminal type | Symmetrical insulated cable lugs |
| Terminal colour groups | Red, blue and yellow |
| Crimp profile | Oval |
| Die station 1 | 0.5–1.5 mm² |
| Die station 2 | 1.5–2.5 mm² |
| Die station 3 | 4–6 mm² |
| Length × width × height | 204 × 22 × 76 mm |
| Phoenix Contact order number | 1212730 |
| Engineering Supplies SKU | PC1212730 |
Match the tool to the lug
First, check the lug part number and wire size. Then match them to the die markings and the terminal maker’s crimp guidance. The colour groups help identify the available die choices, while the size ranges above show what each station covers.
The 0.5–6 mm² headline range spans all three stations. Use the individual station ranges when planning the work, especially at the larger end: station 3 is listed for 4–6 mm².
If the job calls for uninsulated slip-on sleeves with a B crimp, see the separate CRIMPFOX-SC 6. For a set with inserts for several listed lug and ferrule types, compare CRIMPFOX-M SET. These pages provide different terminal and size ranges to help you choose.
Product information and ordering
Read the official CRIMPFOX-RCI 6-M product data for full details. Quote order number 1212730 or SKU PC1212730 when asking about this tool.
For selection and supply support, call Engineering Supplies on (08) 9258 8444 or email sales@engsup.com.au. Send the lug part number and wire size so we can help check the correct crimper for your work.
