Rail Electrical Connections in Queensland: Cembre AR60D & AR260D

Rail electrical connections in Queensland will remain an important part of signalling, traction return, bonding and grounding work as investment continues across the state’s passenger rail network.

Major projects including Cross River Rail, Logan and Gold Coast Faster Rail and The Wave are expanding and upgrading South East Queensland’s rail infrastructure ahead of Brisbane 2032 and beyond. At the same time, ongoing maintenance, renewals and signalling works continue across the wider Queensland network.

For applications requiring a permanent electrical connection to the rail, the Cembre AR rail connection system provides a purpose-designed method of connecting electrical conductors directly to the rail web.

Engineering Supplies supplies genuine Cembre AR contacts together with rail drilling equipment, hydraulic installation tooling, gauges, plungers and accessories for railway contractors and maintenance organisations throughout Australia.

Cembre Rail Electrical Connection System

The Cembre AR system creates an electrical contact within a correctly prepared hole in the rail web.

Rather than relying solely on clamping pressure against the surface of the rail, the installation process hydraulically extrudes a copper bush into the prepared rail hole. As a result, the bush conforms closely to the hole and establishes the electrical and mechanical connection to the rail.

The conductor connection can then attach to the installed contact using the appropriate cable lug and fastening arrangement.

Importantly, the electrical cable connection can subsequently be removed or replaced without removing the rail contact itself.

Cembre developed the AR system for railway applications including:

  • Traction return bonding
  • Rail continuity bonding
  • Ground and earth bonding
  • Substation connections
  • Electrical drainage
  • Signal track circuit continuity
  • Signal track circuit connections

Therefore, the system can support several different railway electrical applications depending on the approved network and project design.

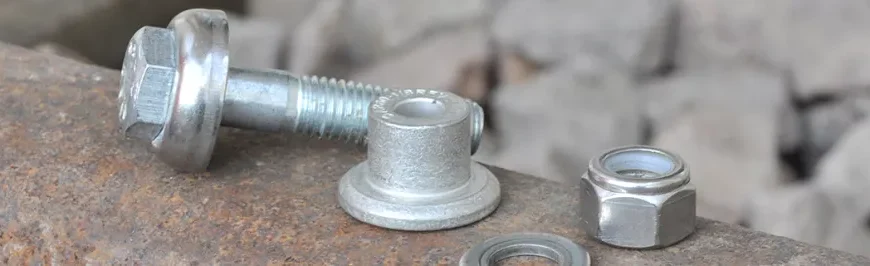

AR60D Single Rail Electrical Contact

The Cembre AR60D is a single electrical contact designed for installation into a 19 mm diameter rail web hole.

Cembre identifies the AR60D for 60E1 rail, formerly UIC60, and the installed contact accepts one electrical connector.

The assembly uses a tin-plated copper bush together with stainless steel fastening components. During installation, the hydraulic tooling extrudes the copper bush into the rail hole to establish the contact with the rail.

Once installed, a cable lug can connect to the AR60D using the M12 fastening arrangement.

Typical applications include signalling circuits, traction return connections, continuity bonding and grounding systems where the approved design requires a single conductor connection to the rail.

AR260D Double Rail Electrical Contact

The Cembre AR260D operates on the same general extrusion principle but provides a double electrical connection.

Like the AR60D, the system installs into a 19 mm rail web hole. However, the AR260D can accommodate two electrical connectors.

Consequently, the double-contact arrangement can suit applications requiring connections on both sides of the rail web or two conductors at the same connection point.

This arrangement can also reduce the need to create two separate rail holes where the approved electrical design requires two connections.

The correct contact should always be selected according to the rail profile, electrical design, conductor arrangement and applicable railway authority or project requirements.

Rail Electrical Connections in Queensland

Several major rail programs are currently reshaping South East Queensland’s passenger network.

Cross River Rail includes a new 10.2 km rail line through Brisbane, including 5.9 km of twin tunnels beneath the Brisbane River and CBD and four new underground stations.

Meanwhile, Logan and Gold Coast Faster Rail will upgrade approximately 20 km of the existing corridor between Kuraby and Beenleigh. The project includes four tracks through the corridor, station upgrades, level-crossing removals and rail-system works.

In addition, The Wave – Stages 1 and 2 will extend heavy passenger rail from Beerwah through Caloundra to Birtinya. Stage 1 includes approximately 19 km of new dual-track railway between Beerwah and Caloundra, while Stage 2 continues the line approximately 7 km to Birtinya.

These projects sit alongside ongoing signalling upgrades, track renewals, maintenance programs and other rail infrastructure works throughout Queensland.

As a result, specialist railway electrical connection, drilling and installation equipment will continue to support contractors working across both new construction and existing network assets.

However, the use of any particular rail contact or installation method must follow the relevant network, engineering and project specifications. Engineering Supplies can assist with the Cembre product and tooling requirements once the specified connection system has been identified.

Preparing the Rail for Electrical Connections

Correct preparation of the rail hole is fundamental to the AR installation process.

Before installing an AR60D or AR260D, crews must produce the specified hole through the rail web using appropriate railway drilling equipment. Furthermore, the completed hole must meet the dimensional requirements for the selected contact.

Cembre manufactures dedicated rail drills, broach cutters, spiral drill bits and positioning equipment for this work.

For mobile rail drilling, the Cembre LD-16B-RPT battery rail drill provides a cordless drilling system capable of producing accurately positioned holes in the rail web.

Once drilling is complete, the appropriate Cembre gauge allows the installer to check the rail hole before installing the electrical contact.

Therefore, the drilling equipment, cutter, positioning system and installation tooling should be considered together rather than treating the contact as an isolated component.

Installing Cembre AR Contacts

Cembre supplies both manual and battery-powered hydraulic equipment for installing AR electrical contacts.

HTEP Manual Installation Tool

The Cembre HTEP provides a manual hydraulic installation system for compatible AR contacts.

The system uses the RHTEP installation head together with the appropriate calibrated plunger, rail-hole gauge and installation accessories.

Because it operates manually, the HTEP provides a self-contained option where crews do not want to rely on rechargeable batteries or an external electrical supply.

In addition, the appropriate AR260 installation washer allows the system to install compatible double contacts.

B1300TEP Battery Installation Tool

Alternatively, the Cembre B1300TEP provides a battery-powered hydraulic installation system.

The kit combines an 18V electro-hydraulic pump with the RHTEP installation head, hydraulic hose and the tooling required for compatible Cembre AR contacts.

Furthermore, Cembre’s SMARTOOL technology allows users to access operating data recorded by the tool.

As a result, the B1300TEP provides a practical option for crews carrying out repeated rail electrical contact installations where battery-powered hydraulic operation is preferred.

Rail Electrical Connection Applications

Depending on the approved railway design, Cembre AR contacts can support applications including:

  • Signal track circuits
  • Traction return systems
  • Rail bonding
  • Rail continuity connections
  • Earthing and grounding systems
  • Substation connections
  • Electrical drainage
  • Railway infrastructure maintenance

For example, a signalling application may require an electrical connection to the rail for a track circuit. Meanwhile, traction applications may require rail connections for return-current or bonding systems.

Therefore, selecting the correct contact involves more than simply matching a part number to a rail profile.

The installer or project engineer should also consider the number of conductors, conductor material, cable lug, rail-hole diameter, connection arrangement and specified installation method.

Single vs Double Rail Electrical Connections

The primary difference between the AR60D and AR260D is the number of cable connections accommodated by the rail contact.

The AR60D provides one electrical connection, while the AR260D provides two.

Consequently, the AR60D suits applications requiring a single conductor at the connection point. The AR260D, by comparison, provides additional flexibility where two conductors need to connect through the same prepared rail hole.

Both systems rely on correctly prepared rail holes and the appropriate Cembre extrusion tooling.

For this reason, contractors should confirm the required connection arrangement before selecting the contact, drilling equipment and installation kit.

Supporting Rail Electrical Connections in Queensland

Engineering Supplies has supplied Australian industry since 1952 and provides specialist Cembre railway equipment, tooling and consumables to rail contractors and maintenance organisations.

For rail electrical connections in Queensland, our Cembre range includes:

  • AR60D single rail contacts
  • AR260D double rail contacts
  • Additional Cembre AR contact configurations
  • HTEP manual installation tooling
  • B1300TEP battery installation tooling
  • RHTEP hydraulic installation heads
  • Battery rail drills
  • Petrol rail drills
  • Rail broach cutters
  • Spiral rail drill bits
  • Rail-hole gauges
  • Calibrated plungers
  • Installation washers and accessories
  • Spare parts
  • Tool servicing and repair

In addition, Engineering Supplies can assist with selecting compatible drilling and installation equipment once the required rail contact and rail profile are known.

Equipment can be dispatched to Brisbane, the Gold Coast, Sunshine Coast, Townsville, Mackay, Rockhampton and regional Queensland locations.

Cembre Rail Drilling Equipment

Rail-hole preparation and AR contact installation form two parts of the same process.

For contractors considering battery-powered drilling equipment, read our guide to the Cembre LD-16B-RPT battery rail drill for Queensland rail projects.

The LD-16B-RPT provides a portable 36V battery-powered solution for rail web drilling and works with Cembre’s range of dedicated railway broach cutters, drill bits and positioning equipment.

Engineering Supplies can supply the complete drilling and AR installation package, allowing contractors to source compatible equipment, consumables and accessories from one specialist supplier.

Enquire About Cembre AR Rail Connections

Engineering Supplies can assist contractors with rail electrical connections in Queensland, including Cembre AR contacts, rail drilling equipment and hydraulic installation tooling.

For pricing, availability or technical assistance with Cembre AR60D, AR260D, HTEP, B1300TEP and associated rail equipment, contact Engineering Supplies.

Call (08) 9258 8444 or email sales@engsup.com.au.

Our team can assist with identifying the appropriate Cembre equipment and accessories for the specified rail profile, electrical connection and installation method.
